Sfera Labs Iono RP D16 Industrial Programmable I/O Modules

Sfera Labs Iono RP D16 Industrial Programmable I/O Modules combine the ease of use of the Raspberry Pi RP2040 microcontroller with multiple digital input and output interfaces. These modules feature an embedded RP2040 with a dual-core Arm® Cortex® M0+ processor, clocked up to 133MHz, 264KB of SRAM, and a large 16MB onboard flash memory. The Iono RP D16 modules offer a rugged, safe, and reliable design, making them suitable for installation in both industrial and residential environments. Sfera Labs Iono RP D16 Industrial Programmable I/O Modules provide a hidden USB 1.1 port with device and host support that is used to flash the microcontroller easily, and it can also be used to connect external USB devices.

Features

RP2040 with a dual-core Arm Cortex M0+ processor, clocked up to 133MHz, 264KB or SRAM
16MB onboard flash memory
16 isolated digital input/output lines
Standard RS-485 interface to the RP2040 UART serial pins, with electrostatic discharge protection
1-wire, I²C, and Wiegand support
Removable terminal blocks for easier installation

Inputs protected against electrostatic discharges and temporary overvoltages
Compact, standard modular housing 3-units size
Optional real-time clock with on-board lithium/manganese dioxide backup battery
Optional secure element chip
Optional earthquake sensor module

Specifications

12V_DC to 28V_DC power supply
1.1A resettable fuse
640mA, 24V outputs

Four 5V digital input/output lines
Current-sinking 24V IEC 61131-2-compliant industrial digital inputs with diagnostics

Sfera Labs Iono RP D16 Industrial Programmable I/O Modules

Features

Specifications

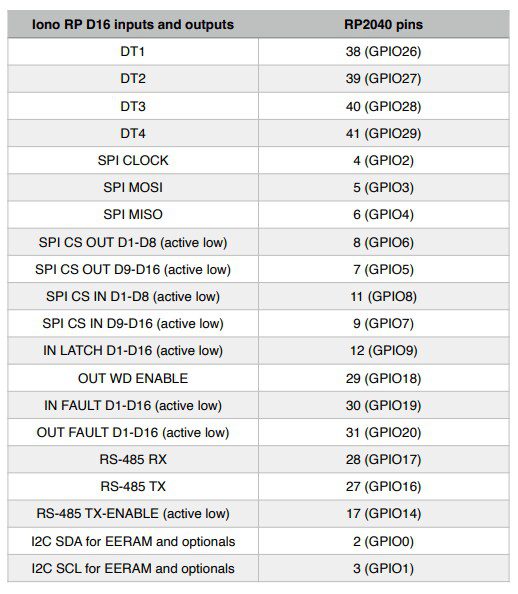

Mapping
