Sequans Monarch Go Certified LTE IoT Category M1 Modems

Sequans Monarch Go Certified LTE IoT Category M1 Modems, connected by Verizon, are comprehensive modem components offering a short route to market and a low Total Cost of Ownership (TCO) to develop cellular-IoT connected devices. The Monarch Go Modems avoid costly lab testing while improving time-to-market thanks to a reduced effort for board design. These modems remove the need to design and tune a cellular antenna as it embeds an optimized LTE antenna, saving months of design effort and lab testing. The plug-and-go Monarch Go Modems feature a pre-installed ThingSpace IoT SIM and a default data plan.

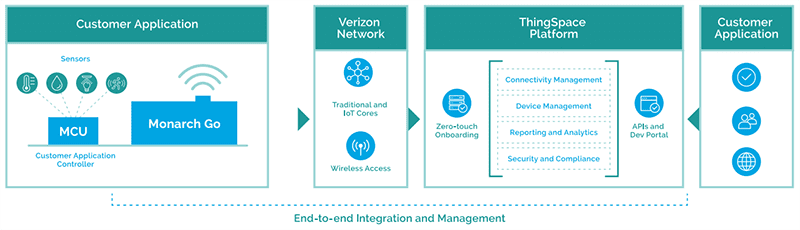

The mechanical integration of the Monarch Go LTE-M modem component into IoT devices is extremely simple, requiring only two screws, a single low-profile board-to-board connector, and no soldering. Monarch Go includes an industry-standard UART interface, a set of AT commands, and examples for connecting your device application MCU controller.

Features

LTE-M modem component with embedded antenna certified for use on the Verizon network
Optional embedded GPS
ThingSpace IoT SIM pre-installed
ThingSpace online management

Easy connection to cloud services from a third party and geolocation
Industry-leading network coverage in the USA
RoHS compliant

Applications

Telemetry
Vending machines
Agriculture sensor applications

Asset and transportation trackers
Hardware tools
Home security monitoring

Specifications

Modem
- Sequans Monarch™ LTE-M chip
- Pre-installed ThingSpace IoT SIM
- Certified for use on the Verizon network (LTE band 13) with a roadmap for global band support
- Compatible with Linux, Windows, and a wide range of embedded and real-time operating systems
- High-speed UART as data and AT command interface
- Embedded IP stack with support for UDP, TCP, TFTP, FTP, HTTP, HTTPS, MQTT, or MQTTS
- Location based services
- SMS send and receive
- Low power modes PSM, eDRX, and RRC IDLE
- Support for Verizon FOTA services from the ThingSpace online management platform
- LTE Cat M1: 375kbps uplink and 300kbps downlink (peak)
LTE-M data plan
- Verizon LTE-M data plans available from the ThingSpace online management platform
- Get started quickly by activating your device/s online at: https://thingspace.verizon.com/start
GPS (Monarch Go-GPS)
- Sensitivity
  - -162dBm tracking
  - -148dBm acquisition
- Location update rate up to 1Hz

Electrical and RF
- 3.1V to 5.5V regulated supply voltage range
- Ultra-low power mode (PSM)
  - 1µA without GPS
  - 35µA with GPS
- 1.8V UART interface
- Maximum transmit power up to +23dBm, LTE band 13
- Certified FCC compliant
Mechanical
- 35mm x 50mm x 14.95mm (1.38″ x 1.97″ x 0.59″) in dimension
- Plastic enclosure fixable with 2 screws
- Shipped with ThingSpace SIM pre-installed
- Embedded LTE antenna
- Low profile 20-pin digital board-to-board connector to connect an application controller through the industry standard UART interface
- LED for modem activity
- LED for GPS activity (Monarch Go-GPS only)
- 16g weight
Temperature ranges
- -40°C to +80°C operating
- -40°C to +85°C storage
