Sensirion SHT4x Smart Gadget

Sensirion SHT4x Smart Gadget is a simple reference design circuit board that demonstrates the performance and ease of use of Sensirion SHT4x Humidity and Temperature Sensors. The SHT4x Smart Gadget features a Liquid Crystal Display (LCD) with humidity and temperature information. It also is equipped with a BLUETOOTH® Low Energy (BLE) module that enables communication with BLE-capable devices such as smartphones. This kit includes the Sensirion SHT4x Smart Gadget equipped with an SHT40 sensor, LCD, push-button, and BLE-capable MCU module, including battery and supports, as well as app download information and detailed hardware design resources.

Features

Simple reference design circuit board
For use with Sensirion SHT4x Humidity and Temperature Sensors
LCD with humidity, temperature, and dew point in °C and °F

BLE connectivity
iOS and Android MyAmbience app available for remote access
Data logging and export capabilities
Detailed hardware design resources available

Kit Contents

Smart Gadget equipped with SHT40 sensor, LCD, push-button, and BLE-capable MCU module, including battery and supports
MyAmbience app for iOS and Android devices available for download in respective application stores
Detailed hardware design resources (PCB layout, BOM) available on GitHub

Sensirion SHT4x Smart Gadget

Features

Kit Contents

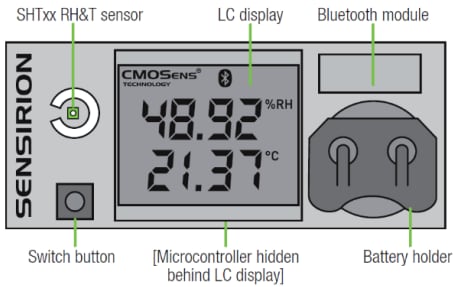

Board Layout

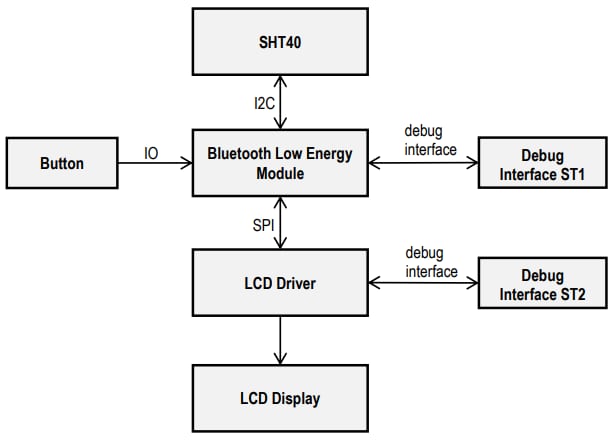

Block Diagram
