Sensepeek PCBite Accessories include a wire harness, insulation cover, magnifier 3x, cable accessory, 5x ground spring needle, and insulated XL base plate. These accessories make the PCBite system flexible, mobile, and user-friendly.

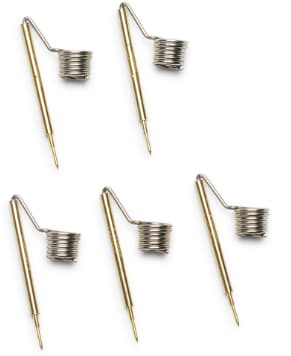

The 5x Ground Spring Needle is used along with the SQ oscilloscope probe for total handsfree measurements at the rated bandwidth. This need is compatible with SQ200, SQ350, and SQ500 handsfree oscilloscope probes.
The Cable Accessory is a set of color-coded cable holders in eight colors for easy identification of the correct channel for measurements. This accessory is compatible with SP10, SP100, and SP200 handsfree probes.
The Insulated XL Base Plate comes with a pre-fitted insulation cover and is available in 297mm x 420mm (DIN A3) dimensions.
The Insulation Cover eliminates reflection from microscope lightning and offers extra protection when working with small PCBs under the microscope. This insulation cover is included in all PCBite kits except kits with a small base plate.
The 3x Magnifier offers enhanced visibility of the work surface and AR coating to reduce reflections from the nearby light. This magnifier includes a strong magnet at the bottom. The 3x magnifier can be used as a handheld but not standalone without a metal surface as a base. This magnifier is made from CNC-machined aluminum.
The 2×4 Wire Harness fits perfectly between PCBite probes and Saleae logic analyzer or devices with an IDC 2,54 (0.1″) pitch pin header.
The Wear and Tear – PCBite Probe is a spare part compatible with SP10, SP100, SP200, SQ10, SQ10, SQ200, SQ350, and SQ500 probes.
The Wear and Tear – PCBite Holder comes with a set of yellow insulation washers (8 pieces) and a set of bottom caps (4 pieces).
