Semtech RClamp0594P 4-Line Surge & ESD Protection

Semtech RClamp0594P RailClamp® 4-Line Surge and ESD Protection are RailClamp TVS arrays with ultra-low capacitance ESD protection. The devices are designed to protect high-speed data interfaces. This series has been specifically designed to protect sensitive components which are connected to high-speed data and transmission lines from overvoltage caused by ESD (electrostatic discharge), CDE (Cable Discharge Events), and EFT (electrical fast transients).

Features

Transient Protection to
- IEC 61000-4-2
  - RCLAMP0594P (ESD) ±17kV (Air), ±12kV (Contact)
  - RCLAMP0594PWQ (ESD) ±20kV (Air), ±17kV (Contact)
- IEC 61000-4-4
  - (EFT) 40A (5/50ns)
- IEC 61000-4-5
  - RCLAMP0594P (Lightning) 6A (8/20µs)
  - RCLAMP0594PWQ (Lightning) 5A (8/20µs)
- ISO-10605
  - RCLAMP0594PWQ (ESD) 30kV (Air), 25kV (Contact)

Qualified to AEC-Q100 (Grade 1) and AEC-Q101
Protects four high-speed data lines
Package design optimized for high-speed lines
5V working voltage
Low clamping voltage
0.3pF typical (I/O to I/O) low capacitance
Solid-state silicon-avalanche technology

Applications

Automotive applications
HDMI 2.0
• Embedded Display Port (eDP)
• Display Port
• LVDS
• V-by-One

Semtech RClamp0594P 4-Line Surge & ESD Protection

Features

Applications

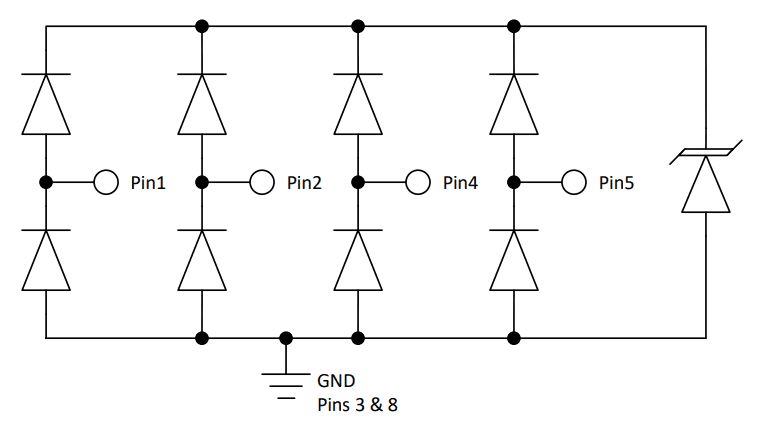

Functional Schematic
