Semtech 1N499x 5W Voltage Regulators

Semtech 1N499x 5W Voltage Regulators provide low dynamic impedance and low reverse leakage currents. These regulators operate at -55°C to 175°C operating temperature range and 6.8V to 300V reverse voltage range (VR). The 1N499x voltage regulators feature low dynamic impedance and a hermetic seal. These voltage regulators are used in 5W applications and are qualified to MIL-PRF-19500/356.

Features

  • Low dynamic impedance
  • Hermetically sealed
  • 5W applications
  • Low reverse leakage currents
  • MIL-PRF-19500/356 qualified



Specifications

  • 6.8V to 300V reverse voltage (VR) range
  • 15.6mA to 700mA IZ(max) range
  • 1Ω to 950Ω impedance (ZZ) range
  • 2µA to 150µA reverse current (IR) range

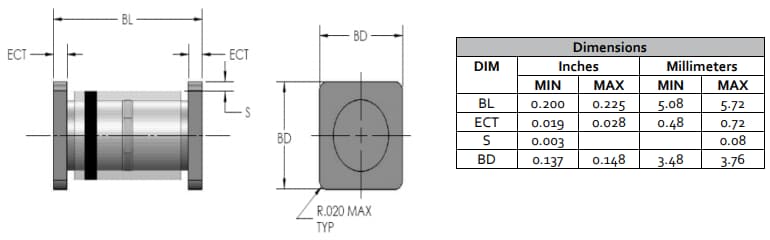

Mechanical Drawing

Mechanical Drawing - Semtech 1N499x 5W Voltage Regulators
