Seeed Studio Wireless Air Temperature & Humidity Sensor

Seeed Studio SenseCAP Wireless Air Temperature and Humidity Sensor – LoRaWAN AU915MHz is designed to measure temperature and humidity in the atmosphere. This sensor comes with a 2-in-1 sensor, a custom battery, and an IP66 enclosure. The wireless air temperature and humidity sensor is optimized for outdoor use cases that need reliable data collected over years. The device incorporates a built-in LoRa transmitter based on Semtech SX1276 for long-range transmission. This sensor features ultra-wide distance data transmission, low power consumption, and provides a variety of flexible cloud services with open API for further development. The wireless air temperature and humidity sensor operate from -40°C to 85°C temperature range. Typical applications include smart building and industrial control, smart agriculture, and environmental monitoring.

Features

  • Semtech SX127x Low Power Long Range Transceiver
  • Semtech SX127x Evaluation Kits
  • Support LoRaWAN protocol Class A
  • High reliability and stability
  • 10km in line of sight scenes and 2km in urban scenes ultra-wide-distance transmission
  • Battery life ≥ 8 years
  • Rapid installation and deployment
  • -40°C to 85°C extended operating temperature range
  • Low power consumption
  • Provides a variety of flexible cloud services with open API for further development

Applications

  • Smart agriculture
  • Smart building and industrial control
  • Environmental monitoring
  • Other wireless sensing applications

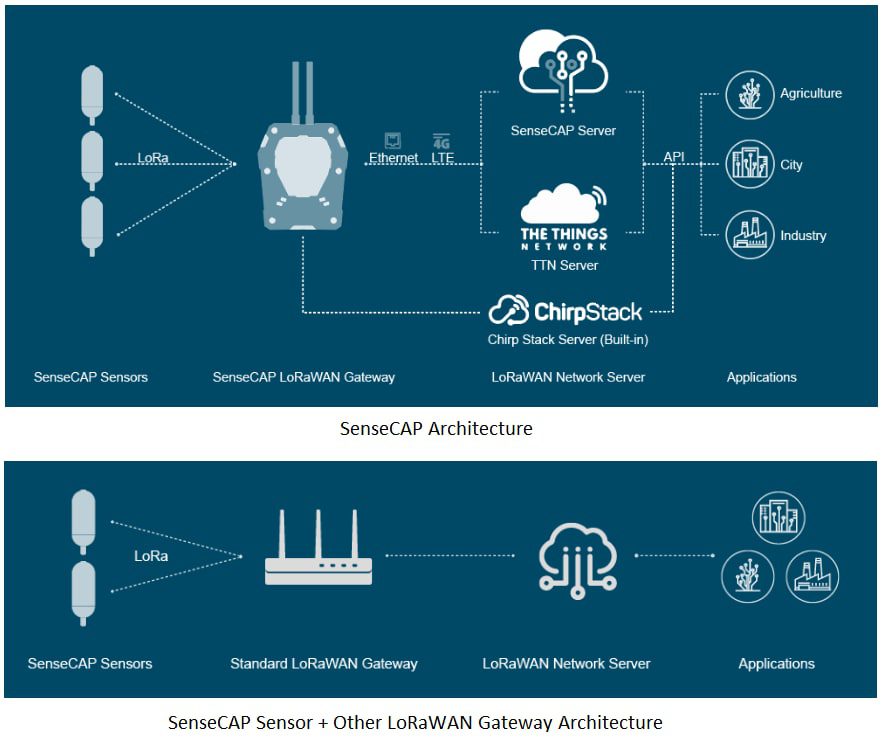

SenseCAP Architecture

Seeed Studio Wireless Air Temperature & Humidity Sensor
