Seeed Studio Waterproof PV-12W Solar Panel

Seeed Studio Waterproof PV-12W Solar Panel is a convenient, cost-effective, and clean solution for supplying power to applications such as environmental monitoring in agriculture, forestry, garden, or security cameras. The 12W Solar Panel is compatible with other environmental sensing Seeed IIoT products, specifically the SenseCAP sensor hub and its sensors.

The robust Solar Panel is designed to withstand the harsh conditions required in agriculture and environmental monitoring. The included 6-pin waterproof aviation connector can directly connect to the Sensor Hub. The aviation connector then charges the integrated battery of the Sensor Hub to supply electricity when the solar panels do not provide enough power.

Features

Mono cel solar cells
Working temperate from -20°C to 70°C
12W Peak power
Durable and suitable for long-term outdoor applications

Robustness with a sturdy frame that protects the solar panel from deformation
Comes with a bracket for easy installation

Kit Contents

12W solar panel with 1.5m cable and six-core plugs
Photovoltaic panel orientation: red + black

Six-pin plug: red connects to 2 pins, black connects to 5 pins

Seeed Studio Waterproof PV-12W Solar Panel

Features

Kit Contents

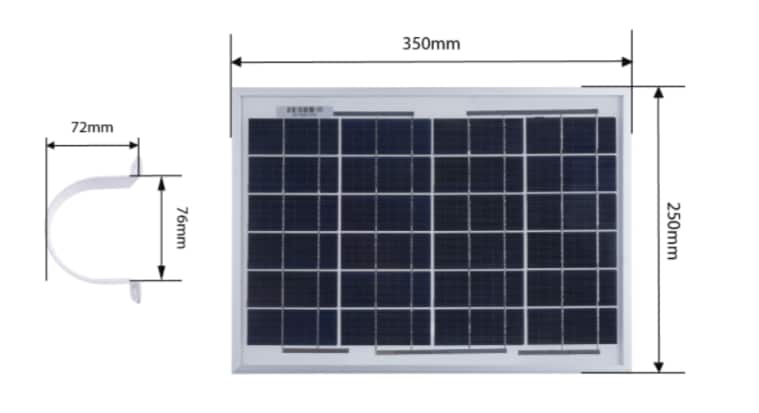

Dimensions

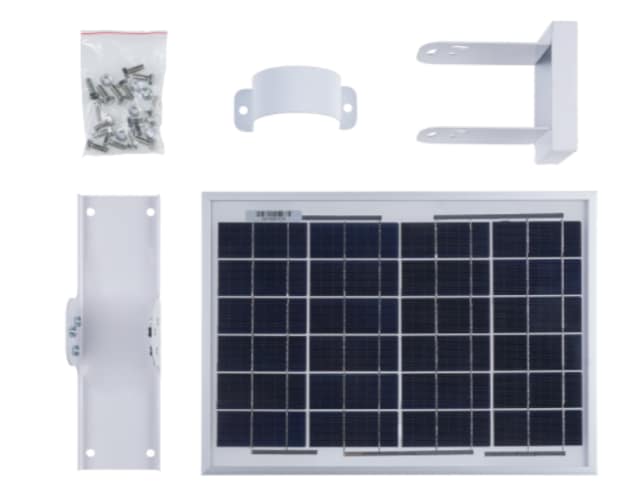

Package Overview
