Seeed Studio UPS Module for Raspberry Pi Pico

Seeed Studio UPS Module for Raspberry Pi Pico is a dedicated Uninterruptible Power Supply (UPS) module designed for the Raspberry Pi Pico. It incorporates a Li-ion battery switching charger with power path management. It also has a voltage/current monitoring chip and allows monitoring the battery operating status via an I²C bus.

Features

Standard Raspberry Pi Pico header supports Raspberry Pi Pico series boards
Incorporates Li-ion battery switching charger with dynamic power path management, more stable power supply
I²C bus communication, monitoring the battery voltage, current, power, and remaining capacity in real-time
Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)

Multi battery protection circuits overcharge/discharge protection, over current protection, short circuit protection, and reverse protection, along with the equalizing charge feature, more safe and stable
Onboard recharging indicator, power indicator, and battery warning indicator to check if the battery is connected correctly

Seeed Studio UPS Module for Raspberry Pi Pico

Features

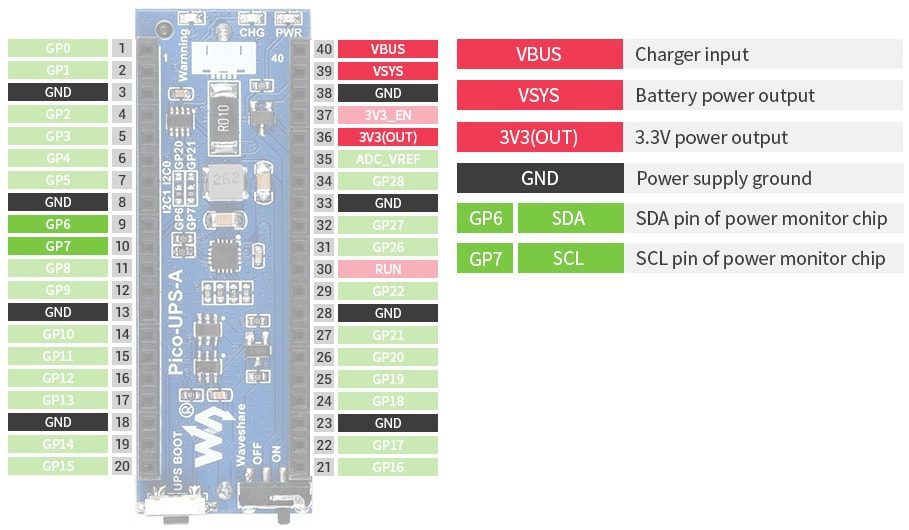

Pinout Definition
