Seeed Studio SenseCAP Wireless Light Intensity Sensor

Seeed Studio SenseCAP Wireless Light Intensity Sensor – LoRaWAN AU915MHz is designed to measure the intensity of light from 0 to 188000lux range. This sensor is battery-powered and comes in a waterproof IP66 enclosure. The wireless light intensity sensor is optimized for outdoor use cases that need reliable data collected over years. The device incorporates a built-in LoRa transmitter based on Semtech SX1276 for long-range transmission. This sensor features ultra-wide distance data transmission, low power consumption, and provides a variety of flexible cloud services with open API for further development. The wireless light intensity sensor operates from -40°C to 85°C temperature range. Typical applications include smart building and industrial control, smart agriculture, and environmental monitoring.

Features

  • Semtech SX127x Low Power Long Range Transceiver
  • Semtech SX127x Evaluation Kits
  • Support LoRaWAN protocol Class A
  • High reliability and stability
  • An ultra-wide 22-bit dynamic range
  • 10km in line of sight scenes and 2km in urban scenes ultra-wide-distance transmission
  • Battery life ≥ 8 years
  • Rapid installation and deployment
  • 0 to 188000lux light intensity range
  • -40°C to 85°C extended operating temperature range
  • Low power consumption
  • IP66 enclosure, suitable for outdoor applications
  • Provides a variety of flexible cloud services with open API for further development

Applications

  • Smart agriculture
  • Smart building and industrial control
  • Environmental monitoring
  • Other wireless sensing applications

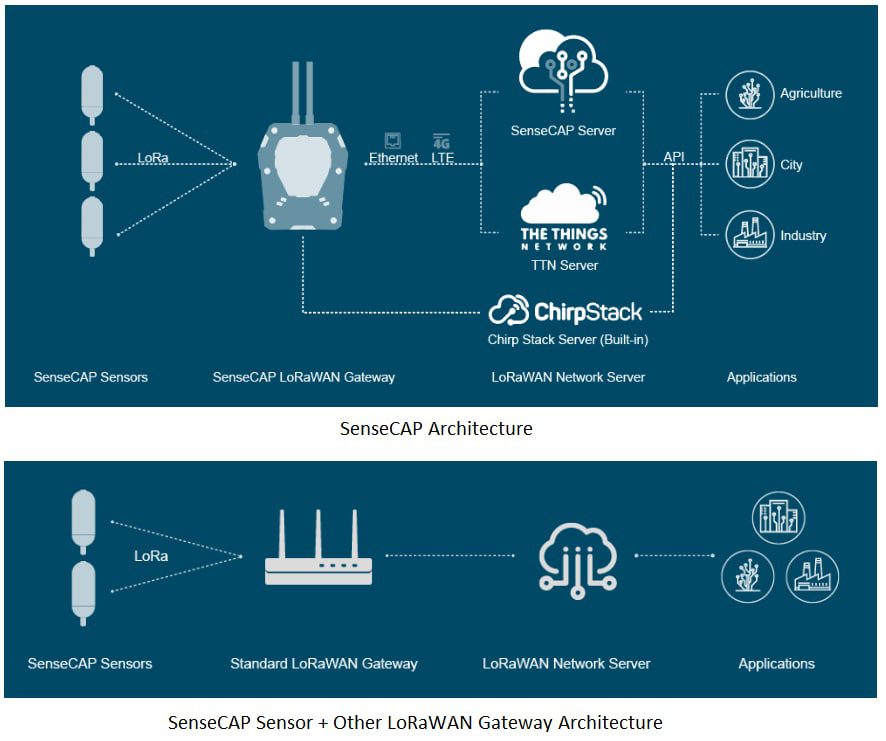

SENSECAP ARCHITECTURE

Seeed Studio SenseCAP Wireless Light Intensity Sensor
