Seeed Studio SenseCAP Wireless Barometric Pressure Sensor

Seeed Studio SenseCAP Wireless Barometric Pressure Sensor – LoRaWAN AU915MHz is designed to measure atmospheric pressure from 300hPa to 1100hPa. The sensor features high precision, stability, and high EMC robustness. This sensor comes with an air pressure sensor, a custom battery, and an industry-grade enclosure. The wireless barometric pressure sensor is optimized for outdoor use cases that need reliable data collected over years. The device incorporates a built-in LoRa transmitter based on SX1276 for long-range transmission. This sensor offers ultra-wide distance data transmission, low power consumption, and provides a variety of flexible cloud services with open API for further development. The wireless barometric pressure sensor operates from -40°C to 85°C temperature range. Typical applications include smart building and industrial control, smart agriculture, and environmental monitoring.

Features

  • Measures atmospheric pressure from 300hPa to 1100hPa
  • Support LoRaWAN protocol Class A
  • High reliability and stability
  • Ultra-wide-distance transmission:
    • 10km in line of sight scenes and 2km in urban scenes
  • Battery life ≥ 8 years
  • Rapid installation and deployment
  • Industrial design supports :
    • -40°C to 85°C extended operating temperature range
  • Low power consumption
  • Provides a variety of flexible cloud services with open API for further development

Applications

  • Smart agriculture
  • Smart building and industrial control
  • Environmental monitoring
  • Other wireless sensing applications

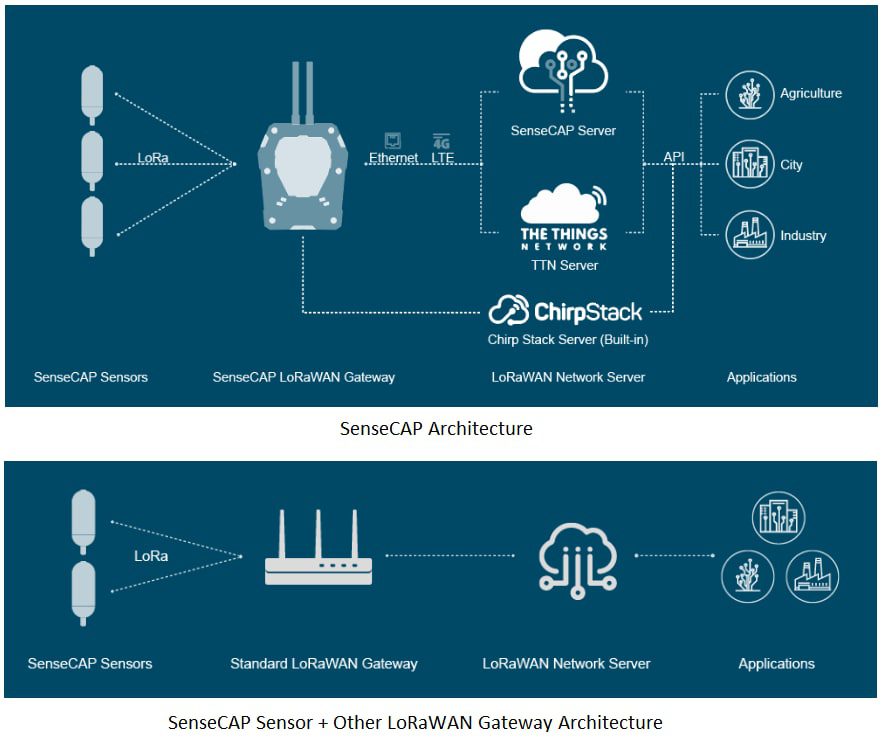

SENSECAP ARCHITECTURE

Seeed Studio SenseCAP Wireless Barometric Pressure Sensor
