Seeed Studio SenseCAP S2110 Grove to MODBUS RS485 Converters

Seeed Studio SenseCAP S2110 Grove to MODBUS RS485 Converters are open-source tools to build RS485 sensors with Grove sensors. The Seeed Studio converters also allow for building a custom industrial-grade LoRaWAN sensor connecting to SenseCAP Cloud with SenseCAP Data Logger. Choose a Grove sensor or a MODBUS RS485 sensor to connect to the SenseCAP S2110 Grove to MODBUS RS485 Converter. Obtain sensor data and test the sensor through the serial monitor while connected via USB.

Features

Easily build MODBUS RS485 industrial-grade sensors
- With open-source source code and IP66 enclosure, easily convert over 500+ existing Grove sensors to MODBUS RS485 industrial-grade sensors
- Six of the most popular environmental Grove sensors are already fully compatible with native firmware, with more to come
SenseCAP Data Logger and IoT platform compatible
- Convert to a SenseCAP LoRaWAN® sensor with SenseCAP Data Logger and take advantage of a quick and easy set-up in just 5 minutes with SenseCAP Mate APP
Supports third-party data loggers and IoT platforms
- Besides SenseCAP Data Logger, connect to other data loggers that support MODBUS RS485 protocol and third-party IoT platforms

Ready-to-deploy industrial-grade outdoor enclosure
- IP66 waterproof rate outdoor enclosure with window and waterproof ventilation hole reserved for light and gas sensors also comes with a customized mounting panel, suitable for pole and wall installation
Powered by Seeed Studio XIAO RP2040
- Take advantage of the powerful Seeed Studio XIAO RP2040 dual-core Arm® M0+ processor and vast open-source resources to customize sensors
- Easily upload code via USB-C™ port

Applications

Smart agriculture
Smart buildings and cities
Smart industrial control

Ofﬁce/home monitoring
Environmental protection
Other wireless sensing applications

Seeed Studio SenseCAP S2110 Grove to MODBUS RS485 Converters

Features

Applications

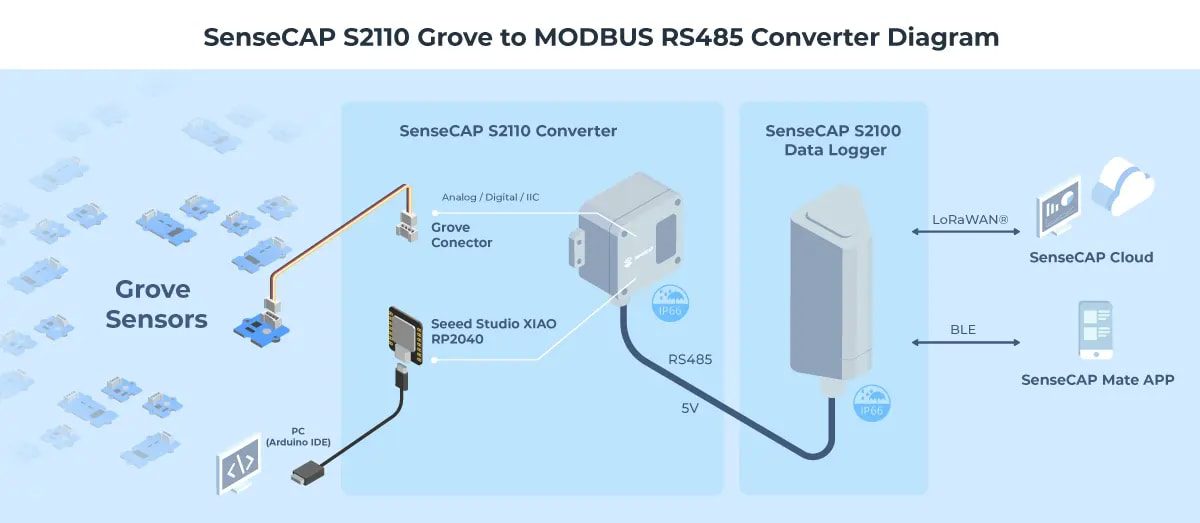

Converter Diagram
