Seeed Studio SenseCAP Indicator Dual MCU 4″ Touch Screens

Seeed Studio SenseCAP Indicator Dual MCU 4″ Touch Screens are driven by ESP32 and RP2040 microcontrollers and support Wi-Fi/BLE/LoRa communication. These touch screens feature Type-C and Grove interfaces, support ADC and I²C transmissionprotocols, and easily connect to other peripherals with rich GPIOs. Built-in tVOCs and CO₂ sensors and a provided Grove TH sensor connect externally to reduce heat interference to get more accurate temperature and humidity results. The fully open-source IoT development platform also offers a one-stop ODM Fusion service for customization and quick scale-up.

Features

Equipped with powerful ESP32S3 and RP2040 dual MCUs and over 400x Grove-compatible GPIOs for flexible expansion options
Real-time air quality monitoring with built-in tVOC/CO2 sensors and an external Grove AHT20 temperature/humidity sensor for more precise readings
Extensive ESP32 and Raspberry Pi open-source ecosystem for infinite application possibilities

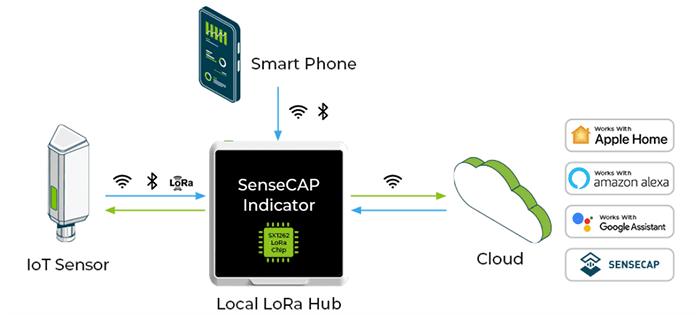

Integrated Semtech SX1262 LoRa chip (optional) for connecting LoRa devices to popular IoT platforms such as Matter via Wi-Fi, without the need for additional compatible devices
One-stop Fusion ODM service for quick customization and scale-up to meet various needs

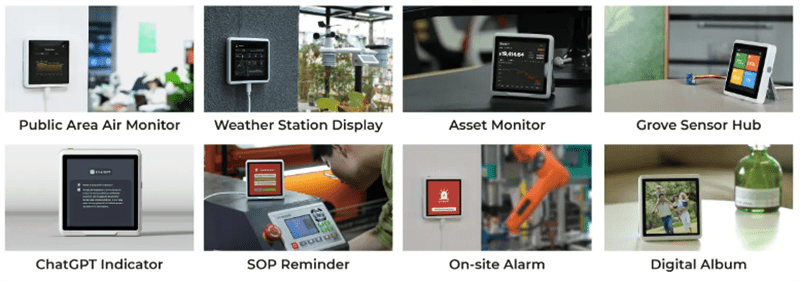

Applications

Applications integrating with third-party platforms, such as AWS, ChatGPT, Matter, NodeRED, and IoTex
Air quality monitors
Weather station displays
Sensor data dashboards

Smart home assistants
Mini sensor hubs
Stock price indicators
Digital albums
Standard operation procedure reminders

Videos

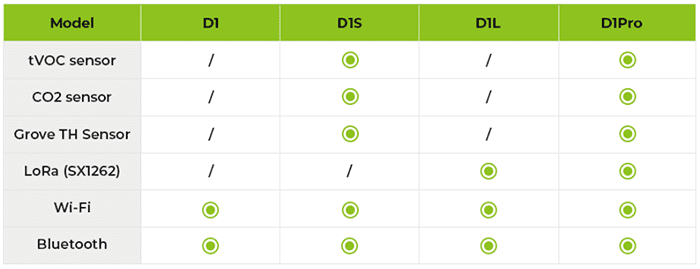

Hardware Versions

The SenseCAP Indicator series offers four different versions: D1, D1S, D1L, and D1Pro. Each version meets different application needs without any extra cost from unnecessary hardware.
