Seeed Studio reComputer Jetson J20xx Xavier NX Development Kits

Seeed Studio reComputer Jetson J20xx Xavier NX Development Kits are compact edge computers built with NVIDIA advanced AI embedded system Jetson Xavier NX and a Seeed reference carrier board. The Jetson J2011 or J2012 feature-rich extension modules, industrial peripherals, and thermal management. The Jetson J2011 or J2012 is nearly the same design as Jetson Xavier NX Developer Kit’s reference carrier board, including rich IOs including a Gigabit Ethernet port, 4 USB 3.0 Type-A ports, an HDMI port, and a DP port.

The Seeed Studio reComputer Jetson 20-1 Xavier NX Development Kits deliver seamless AI integration via compatibility with the entire NVIDIA Jetson software stack, cloud-native workflows, and industry-leading AI frameworks.

Features

System Board Computer comes in either a Jetson J2011 Xavier NX 8GB or Jetson J2012 Xavier NX 16GB

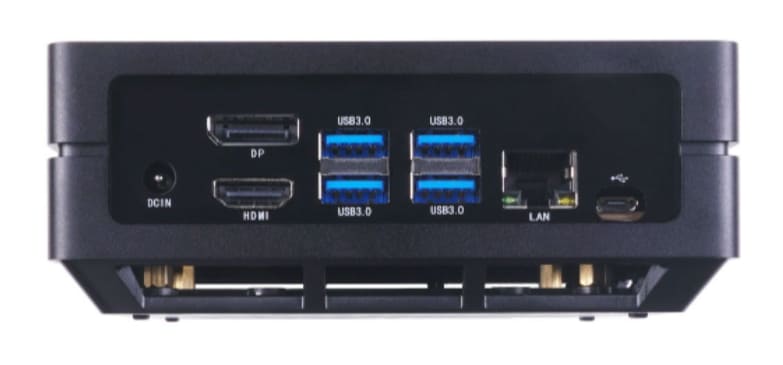

Nearly the same design as Jetson Xavier NX Developer Kit’s reference carrier board, rich IOs including Gigabit Ethernet port, 4 USB 3.0 Type-A ports, HDMI port, and DP port

Pre-installed NVIDIA official JetPack software, ready for cloud-native application
Support a wide range of AI applications fast building with our ecosystem partners
Support Allxon to enable secure remote device management
Able to mount on the wall with mounting holes on the back

Applications

Edge AI into the wild
- UAV, Drone, wildlife protection, agriculture
Smart City
- Traffic, retail, healthcare

Industry 4.0
- Manufacturing, logistics, delivery, service

Kit Contents

Jetson Xavier NX 8GB / NX 16GB x1
Seeed reference carrier board x1
Fan aluminium heatsink x1

Aluminium case(black) x1
19V power adapter x1

Seeed Studio reComputer Jetson J20xx Xavier NX Development Kits

Features

Applications

Kit Contents

Videos

reComputer J1010 PCB Layout

reComputer J1020 PCB Layout

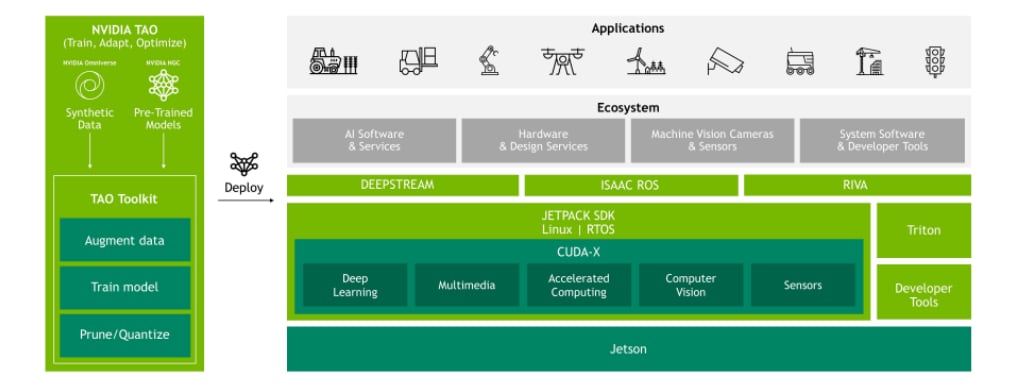

Jetson Software Block Diagram
