Seeed Studio reComputer J202 Carrier Boards

Seeed Studio reComputer J202 Carrier Boards for Jetson Nano/Xavier NX have almost the same design and function as the NVIDIA® Jetson Xavier NX™ carrier board. The boards work perfectly with a Jetson Nano/Xavier NX/TX2 NX module and consist of USB 3.1 ports (4x), M.2 key E for Wi-Fi®, M.2 Key M for SSD, RTC, CAN, and a 40-pin Raspberry Pi GPIO. The boards work as NVIDIA Jetson Xavier NX Development Kit carrier board alternatives, accelerating AI application development and deployment.

Features

Design for Jetson Nano/Xavier NX/TX2 NX (260-pin SODIMM)
Developer Kit carrier board alternative, 1:1 matches the size and nearly the same functional design as the carrier board of Nvidia’s official Jetson Xavier NX Developer Kit
High versatility, suitable for complicated AI graphical applications

Rich peripherals, higher performance stability consists of USB 3.1 ports (4x), M.2 key E for WIFI, M.2 Key M for SSD, RTC, CAN, and a 40-pin Raspberry Pi GPIO
Comprehensive certificates, FCC, CE, RoHS compliant

Applications

Pedestrian detection by Edge Impulse
Hard hat and custom PPE detection
Pose estimation with alwaysAI
Visual anomaly detection using NVIDIA Deepstream IoT

Retail store item detection
Wildfire detection
Animal detection

Seeed Studio reComputer J202 Carrier Boards

Features

Applications

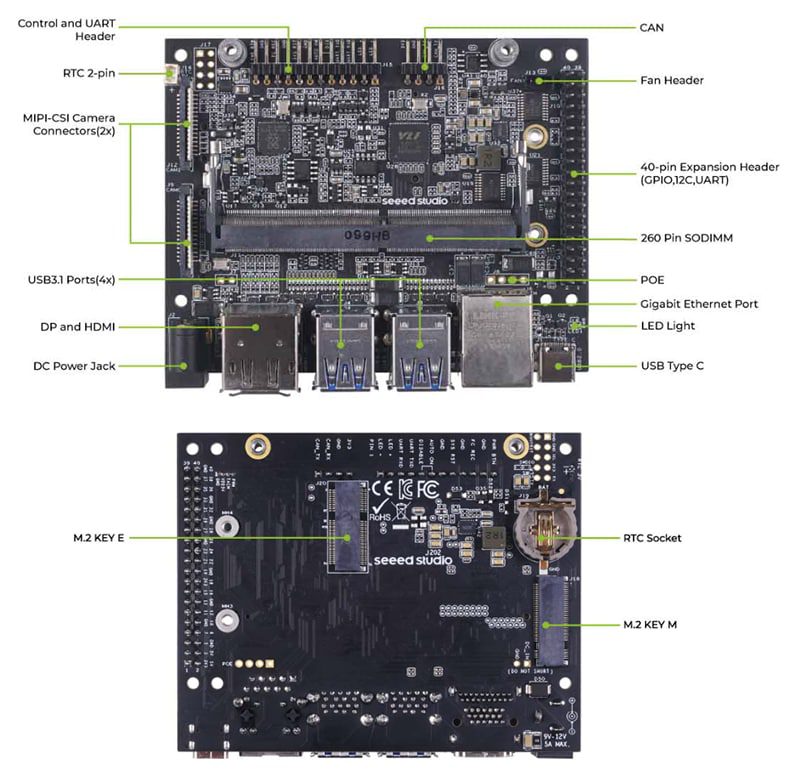

Hardware Overview
