Seeed Studio Raspberry Pi Router Board for CM4 Module

Seeed Studio Raspberry Pi Router Board for CM4 Module is an expansion board based on the Raspberry Pi Compute Module 4. The Router Board provides two full-speed gigabit network ports with better performance, lower CPU usage, and higher stability for extended work compared with a USB network card.

The Seeed Studio Raspberry Pi Router Board embeds a powerful BCM2711 4 core 1.5GHz Cortex-A72 and rich software support in the Raspberry Pi community. This allows the board to be a solid foundation for building high-performance gateways, smart routers, and home IoT platforms.

Additionally, the Raspberry Pi Router Board can be connected to peripherals and used as a mini-NAS, wireless network bridge, or mini server, which can control via terminal.

Features

Raspberry Pi compute module 4 series compatible module
Support standard Raspberry Pi HAT interface
Support POE HAT to supply power to the board
Support POE HAT for external power supply
Full-speed dual gigabit network interface
Master-slave dual USB2.0 interface
Micro SD card slot used to support non-eMMC version of CM4
Standard HDMI video output interface
0.91-inch IIC OLED display

5V DC fan interface (Support controlling via PWM signal)
Ethernet – high-performance Gigabit ethernet controller RTL8111E chip, JXD 2111x G2406s chip as an isolation transformer
- Port0 – Compute module 4 built-in
- Port1 – PCI Express 1000BASE-T NIC
GPIO – 40Pin GPIO compatible with Raspberry Pi
Power Supply of USB-C™ (Type-C) 5V/3A interface
0°C~80°C Operating temperature
146mm x 80mm Dimensions

Applications

Smart office
Smart home

IoT
mini server

Seeed Studio Raspberry Pi Router Board for CM4 Module

Features

Applications

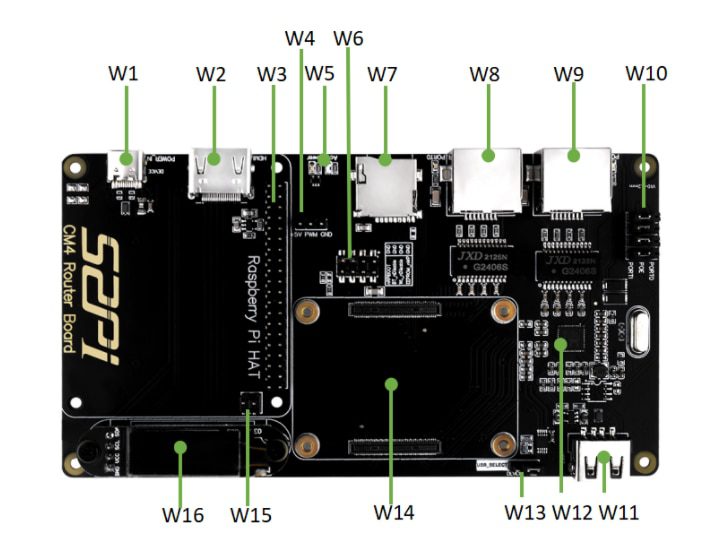

Hardware Overview

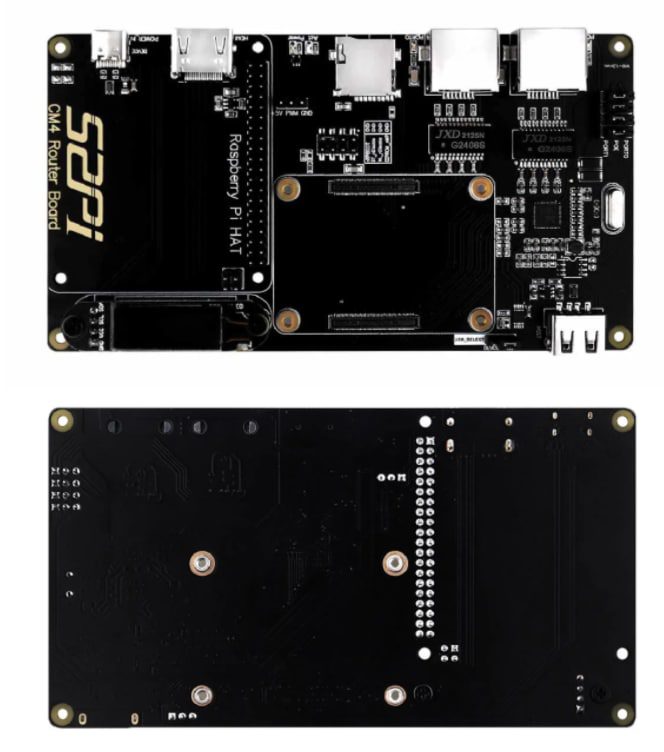

Layout
