Seeed Studio Raspberry Pi Pico Basic Kit

Seeed Studio Raspberry Pi Pico Basic Kit is a kit for the new flexible Pico microcontroller board based on the Raspberry Pi RP2040 microcontroller chip. The Raspberry Pi Pico features a Dual-core ARM® Cortex® M0+ processor, and a flexible clock running up to 133MHz. The board cores run up to 133MHz; 256KB RAM, 30 GPIO pins, and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.

Features

Dual-core ARM Cortex M0+ processor, flexible clock running up to 133MHz
264KB of SRAM, and 2MB of onboard Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 Host and Device support
Low-power sleep and dormant modes
Comprehensive C/C++/Micropython SDK, software examples, and documentation
Drag & drop programming using mass storage over USB

26× multi-function GPIO pins
2× SPI, 2× I²C, 2× UART, 3× 12-bit ADC, 16× controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8× Programmable I/O (PIO) state machines for custom peripheral support

Kit Contents

Raspberry Pi Pico
Micro-USB cable
2X 20-Pin Header

3-Pin Header
Paper box

Seeed Studio Raspberry Pi Pico Basic Kit

Features

Kit Contents

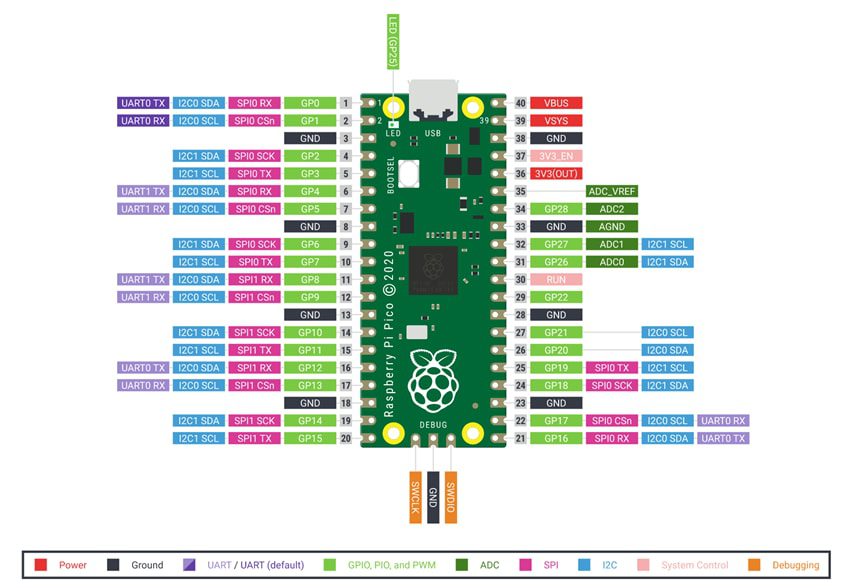

Pinout
