Seeed Studio Maker Pi Pico Base

Seeed Studio Maker Pi Pico Base incorporates a reset button for the Raspberry Pi Pico and gives access to all GPIO pins on two 20 ways pin-headers. It has clear labels, and each GPIO is coupled with an LED indicator for convenient code testing and troubleshooting. The bottom layer of the board comes with a comprehensive pinout diagram showing the function of each pin.

Features

Work out-of-the-box, no soldering
Access to all Raspberry Pi Pico’s pins on two 20 ways pin headers
LED indicators on all GPIO pins
3x programmable push button (GP20-22)
1x RGB LED – NeoPixel (GP28)

1x Piezo buzzer (GP18)
1x 3.5mm stereo audio jack (GP18-19)
1x Micro SD card slot (GP10-15)
1x ESP-01 socket (GP16-17)
6x Grove port

Applications

Rapid prototyping
Wearable devices
intelligent control

Overview

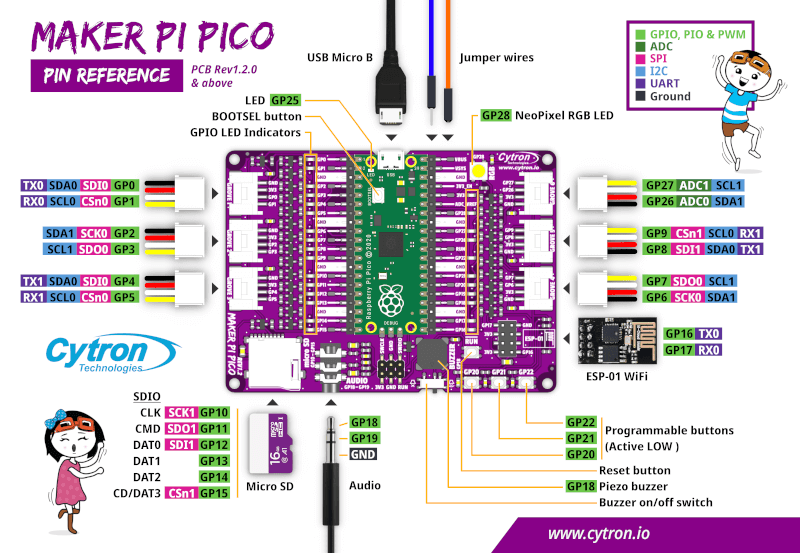

Seeed Studio Maker Pi Pico Base

Board Layout

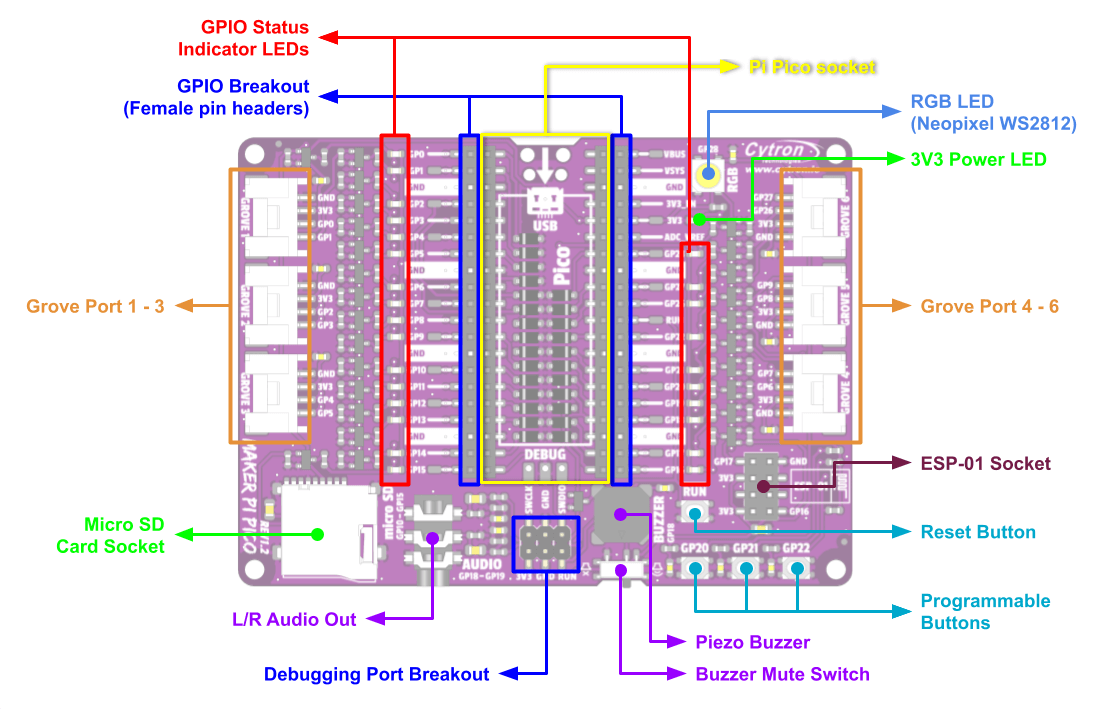

Seeed Studio Maker Pi Pico Base

Dimensions

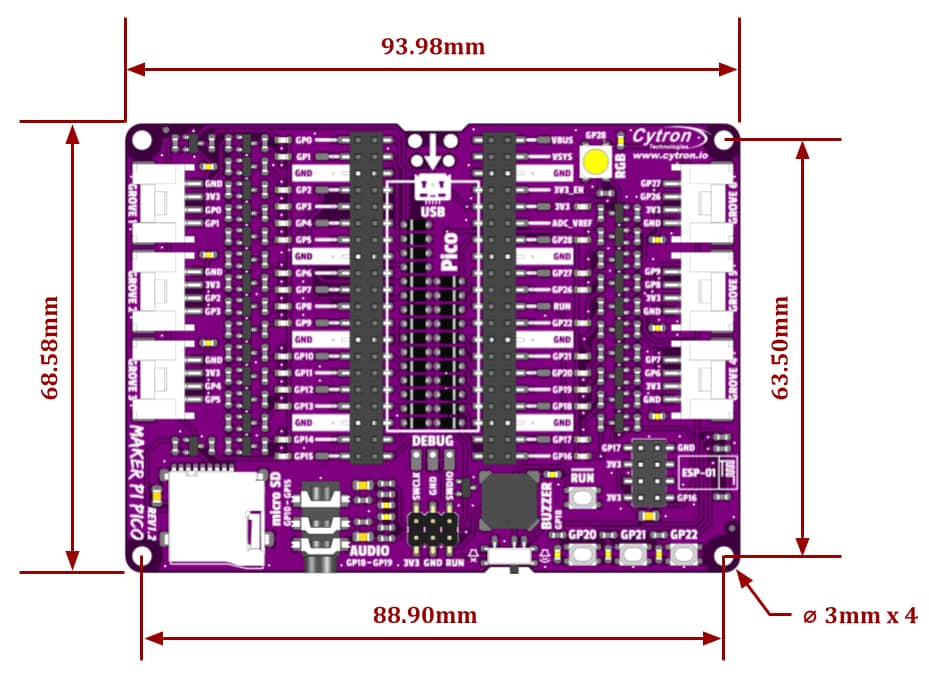

Seeed Studio Maker Pi Pico Base
