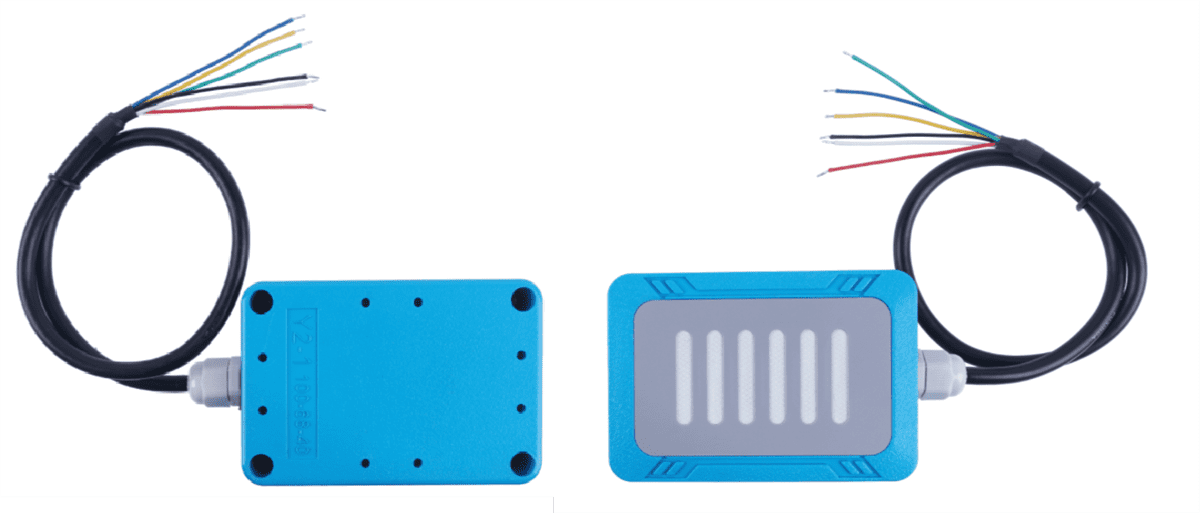

Seeed Studio Digital NDIR CO2 Sensor

Seeed Studio Digital NDIR CO2 Sensor with UART and I²C interfaces also includes a PTFE filter. The CO2 sensor offers built-in calibration functionality with high accuracy, fast response, and supreme stability. Additionally, the sensor can monitor a wide range of 400ppm to 10,000ppm, ±(30ppm + 3%MV).

With these features and functionality, combined in a compact size, the Seeed Studio Digital NDIR CO2 Sensor is widely applicable in greenhouses, poultry farms, transportation stations, and other application scenarios.

Features

Easy to install and integrate
High level of accuracy, fast response, and supreme stability
Ability to monitor wide range 400ppm ~ 10,000ppm, ±(30ppm + 3%MV)
Ultra-low-power average current 45µA

Wide supply voltage range enables a variety of battery options
Adjustable measurement period by host
Adjustable ABC period by host

Applications

Smart agriculture /precision farming
Greenhouse management
Smart cities

Smart weather station
Transportation stations
Other environmental monitoring applications
