Seeed Studio CANBed Arduino CAN-Bus RP2040 Development Board

Seeed Studio CANBed Arduino CAN-Bus RP2040 Development Board is equipped with a powerful RP2040. The board has a high-performance CAN controller and receiver operating at CAN 2.0 up to 133Mhz. It has a flexible CAN interface which can be used as a 4-PIN Terminal or D89 connector as OBD-II mode through a programmable Micro USB.

Features

Powerful Raspberry Pi RP2040 processor
Implements CAN V2.0B at up to 1 Mb/s
Industrial standard 9-pin sub-D connector or 4PIN Terminal
OBD-II and CAN standard pinout selectable at the sub-D connector

2x4Pin Connector compatible with Grove system from Seeedstudio
SPI Interface
Standard (11 bit) and extended (29 bit) data and remote frames
Power input from 9-28V

Applications

Hack and upgrade your car
Vehicle dynamics control system
Attitude and orbit control system

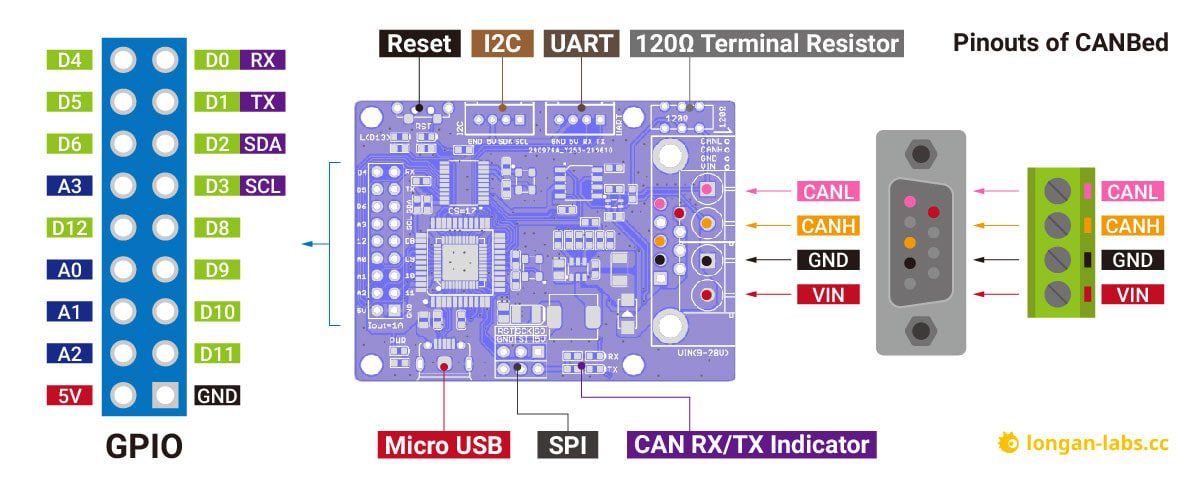

Hardware Pinout

Seeed Studio CANBed Arduino CAN-Bus RP2040 Development Board
