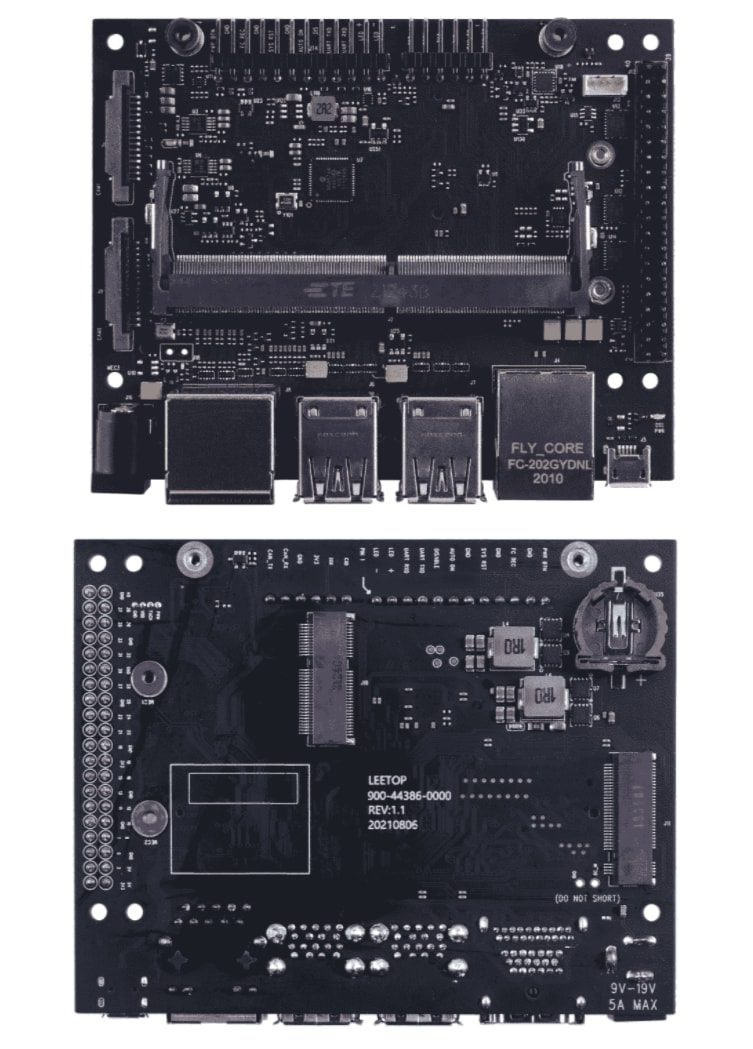

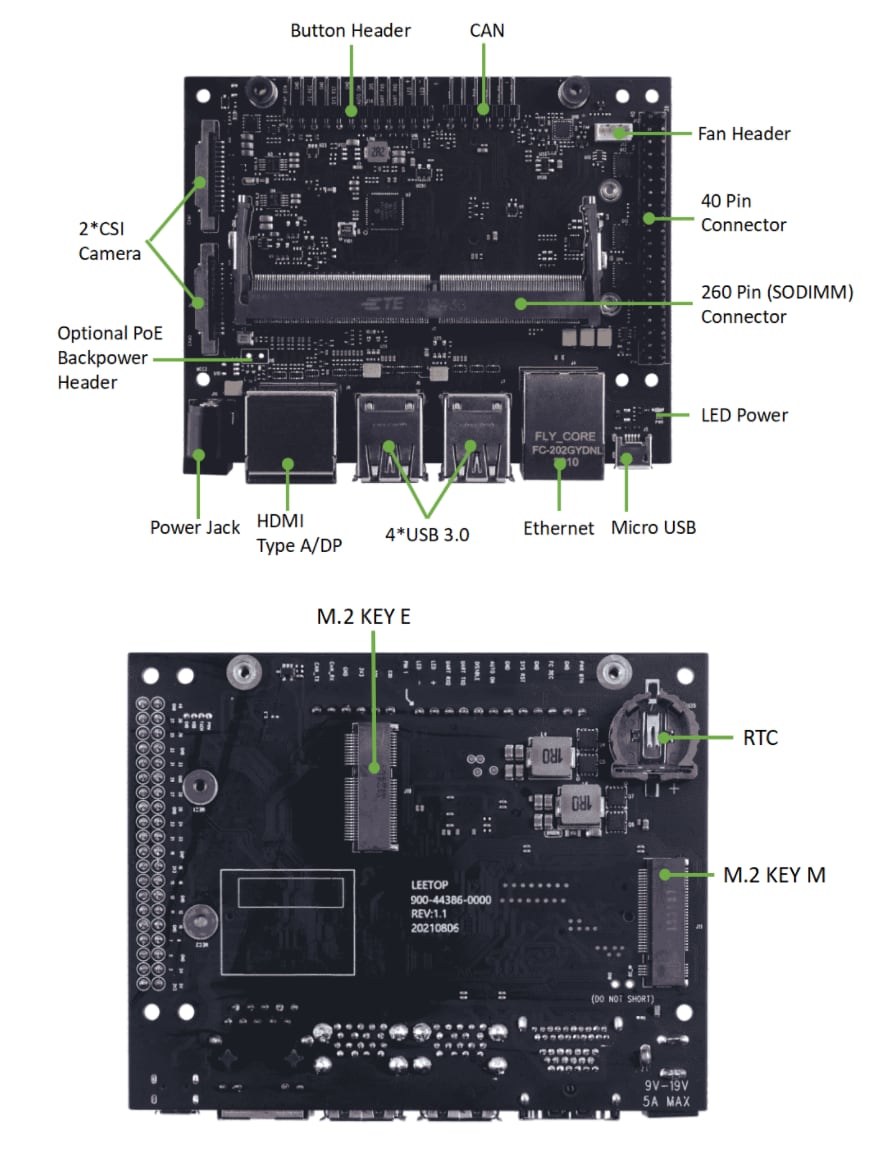

Seeed Studio A206 Carrier Board is an interface-rich NVIDIA Jetson Nano / Xavier NX/ TX2 NX, compatible carrier board. The A206 Board features HDMI 2.0, Gigabit Ethernet, USB3.0, M.2 key E wi-fi / BT, M.2 key M, CSI camera, RS232, CAN, PIO, I2C, and I2S fans. The A206 Carrier Board has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX Developer Kit.
The Seeed Studio A206 Carrier Board works with an NVIDIA Jetson above to achieve graphic AI applications. Combined with the NVIDIA Jetson Nan/Xavier NX/TX2 NX module, the board supports the NVIDIA JetPack. The JetPack includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, and multimedia processing.
Utilizing the multiple camera connectors, the board is suitable for complex AI graphical applications such as automated optical inspection, In Video Action, robot control, and drone. The A206 is ideal for software development within the Linux environment.
Additionally, standard connectors access Jetson Xavier NX features and interfaces, enabling a highly flexible and extensible development platform.
