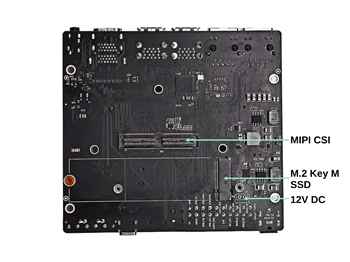

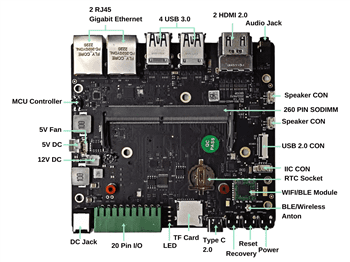

Seeed Studio A205E Carrier Board for Jetson Nano/Xavier NX

Seeed Studio A205E Carrier Board for Jetson Nano/Xavier NX is designed for industrial communication. The Seeed Studio A205-E provides RS232 RS485, CAN interface, and high-speed PCIe M.2 Key M (SSD). The board provides a rich set of I/Os, including a microSD card slot, HDMI, dual Gigabit Ethernet, and 4x USB 3 for different applications. The board operates in the -25°C to 80°C temperature range.

Features

Cost-effective industrial purpose carrier board
- Industrial interfaces and rich I/Os will save costs for prototyping and deployment
Work with advanced embedded system
- Fully support NVIDIA Jetson Nano/Xavier NX/TX2 NX module with up to 21 TOPs AI performances
Industrial connectivity
- 1x CAN, 1x RS232, and 1x RS485

Various sets of I/Os
- 4x USB Type A, 1x USB 2.0 Type C, 1x SPI, 2x I²C, 1x MicroSD card slot, M.2 Key M(SSD), 1x Fan(5V PWM), 2x LED State
Certifications
- CE, FCC, RoHS

Applications

Industry 4.0
- Helmet detection, hard hat detection, and custom PPE detection
- Visual anomaly detection using NVIDIA Deepstream IoT
- Industrial communications with RIVA
Retail
- Sentiment analysis (webinar: learn your customer with AI by Zenus smart camera)
- Retail store items detection
Robotics
- Under-ice sensing ROV
- Warehouse towing robot

Traffic management
Agriculture
- Weeding machines, Tractors, Livestock detection
- Healthcare
- Medical imaging analysis
