Seeed Studio 4-Channel SPDT Relay HAT for Raspberry Pi

Seeed Studio 4-Channel SPDT Relay HAT for Raspberry Pi is a solution for controlling devices that cannot be directly controlled by the I²C bus. This HAT utilizes four high-quality Single Pole – Double Throw (SPDT) relays and provides Normally Open/ Normally Closed (NO/NC) interfaces that control the high current load. The SPDT relay HAT operates from 4.75V to 5.5V input voltage range, 15A maximum switching current, and is available in 91.2mm x 56mm x 32mm dimension.

Features

High-quality Single Pole – Double Throw (SPDT) relays
Compatible with Raspberry Pi 1/2/3/4
I²C interface with three hardware SW1 (1, 2, 3) to select the fixed I²C-bus address
Relay screw terminals for easy connection

Standardized shield shape and design
LED working status indicators for each relay
COM, Normally Open (NO), and Normally Closed (NC) relay pins for each relay

Specifications

4.75V to 5.5V power supply range
30V_DC/ 250V_AC maximum switching voltage
15A maximum switching current

1Hz frequency
91.2mm x 56mm x 32mm dimension

Seeed Studio 4-Channel SPDT Relay HAT for Raspberry Pi

Features

Specifications

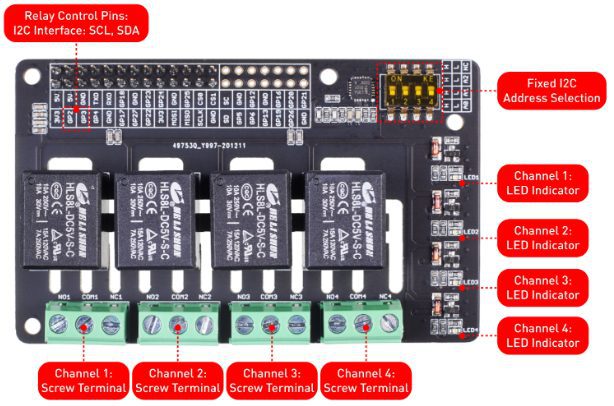

Hardware Overview
