ScioSense UFC ST Nucleo Shields Expansion Boards

ScioSense UFC ST Nucleo Shields Expansion Boards can easily be combined with ST development kits and ScioSense evaluation kits. The boards feature two rows of connectors that fit into the ST Nucleo boards. An additional connector is available to use with the PICOPROG interface. Shields are available for TDC-GP30YA-F01 (with flow firmware), AS6031, and AS6040.

Features

Can easily be combined with the ST development kits and the ScioSense evaluation kits in combination with the UFC Evaluation Software package
The boards have two rows of connectors that fit into the ST Nucleo boards and an additional connector to the PICOPROG interface
Shields are available for TDC-GP30YA-F01 (with flow firmware), AS6031, and AS6040

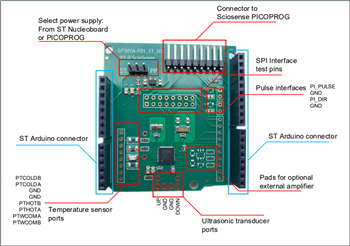

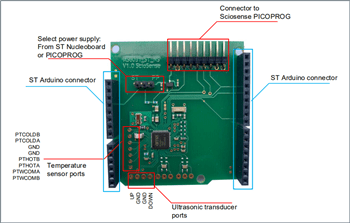

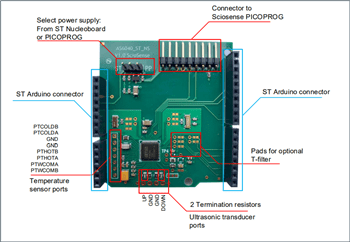

Board Layout
