Schurter UHS Fuses

Schurter UHS Fuses are compact and fast-acting SMT fuses designed to safely interrupt high-energy overcurrent in the Separated Extra Low Voltage (SELV) range. These fuses feature a high breaking capacity of up to 2000A and a high range of -55°C to 125°C operating temperature. The UHS fuses are designed with safe tripping in 10s, minimizing the excessive temperature dissipation at twice the rated current. These fuses are ideally used in automotive, telecom equipment, data center appliances, and power tools.

Features

Quick-Acting F characteristic
2000A high-breaking capacity
50A to 100A rated current
Safe tripping in 10s at twice the rated current
Small component with 4.7mm height
-55°C to 125°C high operating temperature range

PCB and SMT mounting style
Ni/Sn-plated copper alloy terminals
Weighs about 0.53g
8.4mm x 9.4mm dimensions
RoHS and REACH compliant
AEC-Q200 qualified

Applications

Automotive
Telecom equipment

Datacenter appliances
Power tools

Schurter UHS Fuses

Features

Applications

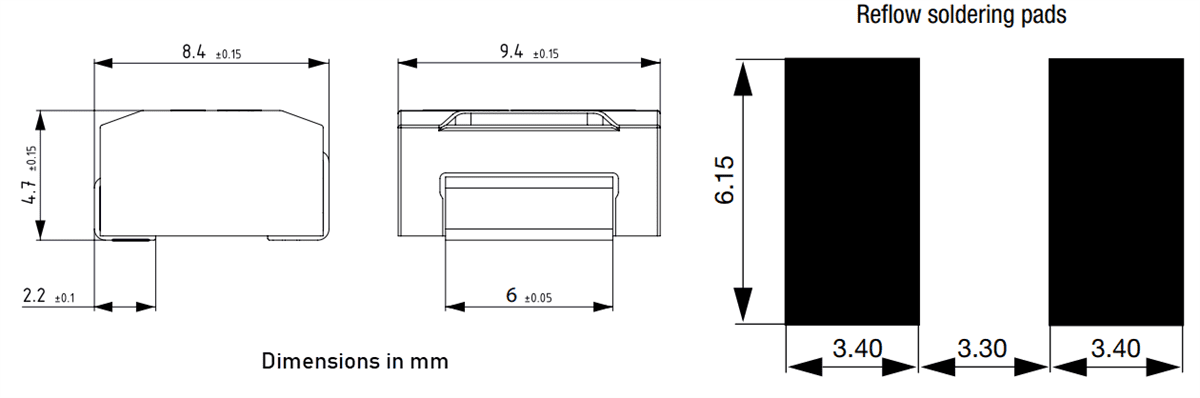

Dimensions
