Schurter TA36 Rocker Actuator Thermal Circuit Breakers

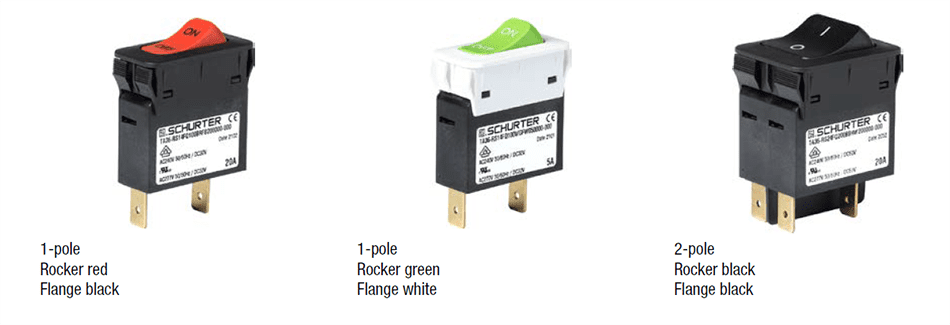

Schurter TA36 Rocker Actuator Thermal Circuit Breakers offer a high UL rating of 277V_AC and are available in 1- or 2-pole versions with compact dimensions. The TA36 Circuit Breakers offer both the function of an appliance switch and thermal overcurrent protection in a 0.05A to 20A rated current range. The TA36 switches are designed for efficient snap-in mounting and are equipped with plug-in connections (Quick-Connect). Fully customizable, the circuit breakers are offered with three color options for the flange, seven color options for the actuator, and 5 different types of marking. The Schurter TA36 Rocker Actuator Thermal Circuit Breakers are ideal for use in industrial, medical technology, and consumer goods applications.

Options

Features

Thermal circuit breaker
Single and dual pole options
Snap-in version available
Positively trip-free release
S-type method of operation acc. to IEC
Various rocker and flange colors available

Wide current range
277V_AC UL rating
Finely graded rated currents
High configurability
Appealing design

Applications

Power tools
Medical and laboratory equipment
Industrial appliances
Equipment for construction

Cleaning equipment
Commercial and household kitchen appliances
Industrial power
Industrial lighting arrays

Specifications

Rated AC voltage
- 240V_AC IEC
- 277V_AC UL/CSA
Rated DC voltage
- 32V_DC for 1-pole
- 60V_DC for 2-pole
0.05A to 20A AC rated current range
IP40 degree of protection (front-side) acc. to IEC 60529
500V_DC > 100MΩ insulation resistance

50,000 switching cycle lifetime
-30°C to +60°C allowable temperature range
30G/18ms shock resistance acc. to IEC 60068-2-27, test Ea
Thermal tripping type
Rocker actuation type
Weight
- 19g for 1-pole
- 32g for 2-pole
