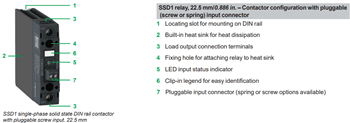

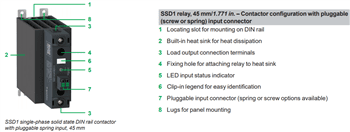

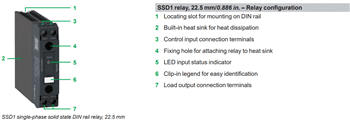

Schneider Electric SSD1 Single-Phase DIN-Rail Solid State Relays provide high-power density of up to 60A, a built-in heat sink, DC and random switching options, as well as spring and screw input options. These industrial-mount SSRs are available in two configurations: 22.5mm relay and 22.5mm and 45mm contactor. They include a locating slot for DIN-rail mounting, a fixing hole for attaching relay to heat sink, LED input status indicator, clip-in legend for easy identification, and load output connection terminals. The 22.5mm relay configuration also includes control input connection terminals. The 22.5mm and 45mm contactor configurations feature a pluggable (screw or spring) input connector and optional lugs for panel mounting.
Schneider Electric SSD1 Single-Phase DIN-Rail SSRs offer 48VAC to 600VAC output and control circuit voltages of 4VDC to 32VDC and 90VAC/VDC to 280VAC/VDC. The EN 50155/IEC 61373/ IEC 60571-compliant relays are ideal for railway and rolling stock applications, while the IEC 60747-4-3-compliant devices are suitable for applications with high electromagnetic interferences.
