Schaffner FN2415 Single-Phase EMC Filters

Schaffner FN2415 Single-Phase EMC Filters are designed for the control lines of complex equipment and machinery. The filters ensure interference-free operation of control equipment and improve operational reliability and system stability. A compact EMC filter design requires minimum space. The B version is without leakage current and the L version has a reduced leakage current of 3mA. Schaffner FN2415 Single-Phase EMC Filters feature solid, touch-safe terminal blocks that offer a sufficient contacting cross-section, according to the EN 60204-1 installation standard.

Features

Ensures reliable operation of the control unit
Reduces risk of internal interference propagation and coupling
B version without leakage current (0mA)
L version with reduced leakage current of 3.5mA

Simple and time-saving installation
Meets EN 60204-1 installation standards
Meets electromagnetic compliance of EN50370-1 standards for machine tools

Applications

Industrial equipment
Process automation systems

Complex machine tools
Control units

Specifications

250V_AC maximum continuous operating voltage
DC to 400Hz operating frequency
6A to 16A @ 50°C rated currents

IP20 protection category
-25°C to +100°C operating temperature range

Schaffner FN2415 Single-Phase EMC Filters

Features

Applications

Specifications

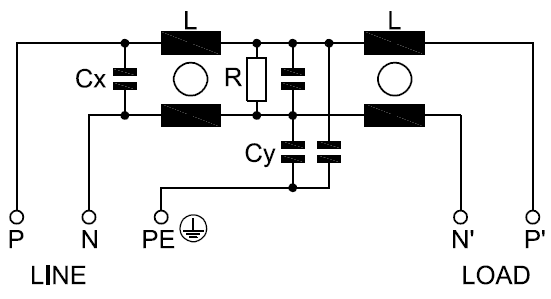

Typical Electrical Schematic
