Sanyo Denki San Ace 40 9HVA High Static Pressure DC Fans

Sanyo Denki San Ace 40 9HVA Type High Static Pressure DC Fans measure 40mm x 40mm x 28mm and feature very high static pressure (9.24″ H₂O) with a maximum airflow of 37.1CFM. The energy-saving San Ace 40 9HVA fans also provide a 20% reduction in power consumption compared to previous models. The small size provides enhanced design flexibility and high cooling performance. A PWM control function is standard to control the fan speed. These fans are ideal for cooling 1U servers, switching power supplies, and communications equipment.

Features

High airflow and static pressure
Energy-saving
Space-saving
cUL and TUV approved

Customizations
- Harness assembly and custom wiring
- Conformal coating
- Sensor options

Applications

1U servers
Switching power supplies
Communications equipment

Specifications

12V rated voltage
10.2V to 13.8V operating voltage range
Temperature range
- -20°C to +70°C operating
- -30°C to +70°C storage
Expected life
- 30,000 hours at +60°C
- 53,000 hours at +40°C
Motor protection functions
- Locked rotor burnout protection
- Reverse polarity protection
20% to 100% PWM duty cycle
0.12A to 2.6A rated current

1.4W to 31.2W rated input range
Dielectric strength of 50Hz to 60Hz, 500V_AC, for 1 minute
10MΩ or more insulation resistance with a 500V_DC megger
Sound Pressure Level (SPL) at 1m away from the air inlet
57g in mass
Materials
- Plastic frame with UL 94V-0 flammability rating
- Plastic impeller with UL 94V-0 flammability rating

Sanyo Denki San Ace 40 9HVA High Static Pressure DC Fans

Features

Applications

Specifications

Videos

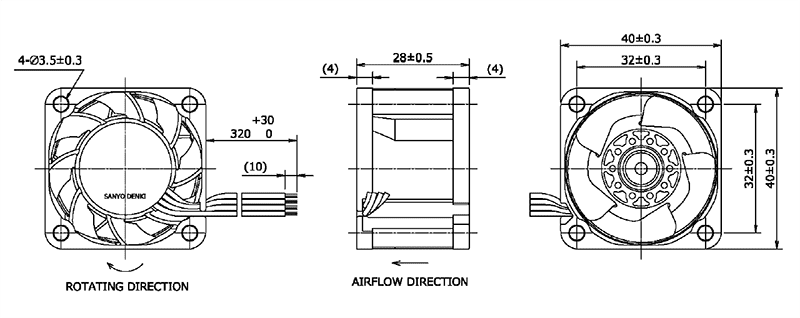

Dimensions: mm
