SanRex GSA IGBT Modules

SanRex GSA IGBT Modules offer a low V_ce(sat)type and a high-speed switching type. These modules come in compact and reliable SOT-227 standard packaging and can be directly attached to the heat sink. The GSA IGBT modules have an isolation voltage of 2500V and are RoHS compliant. The GSA100AA60 operates on a low switching frequency causing low losses and the GSA75AA120 operates with high-speed performance of 40kHz to 70kHz. The typical applications are in AC/DC welding equipment, UPS, forward-reverse pulse power, induction heating supply, and switching power mode power supply.

Features

Standard SOT-227 compact package
Directly attachable to the heat sink
2500V isolation voltage
RoHS compliant
150°C maximum operating temperature
-40°C minimum operating temperature
500W power dissipation
20V maximum gate emitter voltage
SMD/SMT mounting style
38.1mm × 25.3mm package

GSA100AA60:
- Low switching frequency range
- 600V collector-emitter voltage (V_CES)
- 1.5V collector-emitter saturation voltage (V_CE(SAT))
- 100A continuous collector current (I_C)
- 10μA gate-emitter leakage current
GSA75AA120:
- 40kHz to 70kHz high-speed performance
- 1200V collector-emitter voltage (V_CES)
- 75A continuous collector current (I_C)
- 3.3V collector-emitter saturation voltage (V_CE(SAT))
- 300μA gate-emitter leakage current

Applications

GSA75AA120:
- Welding power supply
- Induction heating power supply
- Switching power supply
- UPS

GSA100AA60:
- AC/DC TIG welder
- AC switch for UPS
- Pulse reverse rectifier

SanRex GSA IGBT Modules

Features

Applications

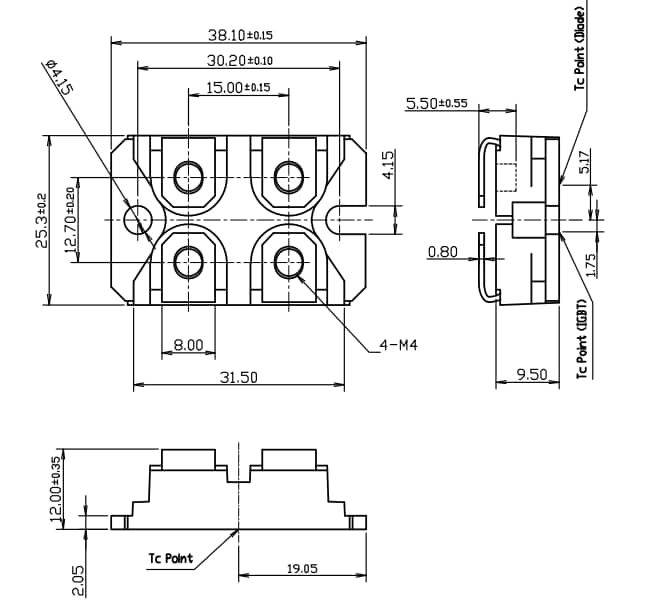

Dimensions
