ROYALOHM Thick Film Chip Resistors

ROYALOHM Thick Film Chip Resistors are small, lightweight, and cost-effective resistors with a 1/20W to 1W power rating at +70°C, depending on the package size. These resistors have a maximum working voltage of 25V to 200V, maximum overload voltage of 50V to 500V, and an operating temperature range of -55°C to +155°C. Available package sizes include 0201, 0402, 0603, 0805, 1206, 1210, 2010, and 2512. ROYALOHM Thick Film Chip Resistors are suitable for both wave and reflow soldering. ROYALOHM resistors are widely used in various applications.

Features

Small size
Lightweight

Cost-effective resistors
Suitable for both wave and reflow soldering

Applications

Navigators
Mobile phones
Telecom
Set-top boxes
Meters

Consumer electronics
Lighting
Automations
Power supplies

Specifications

1/20W to 1W power rating at +70°C
25V to 200V maximum working voltage
50V to 500V maximum overload voltage
≥1000MΩ insulation resistance

<50mΩ resistance value of jumper
0.5A to 2A rated current of jumper
1A to 10A maximum overload current of jumper
-55°C to +155°C operating temperature range

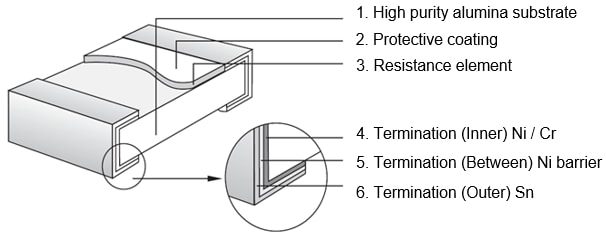

Construction

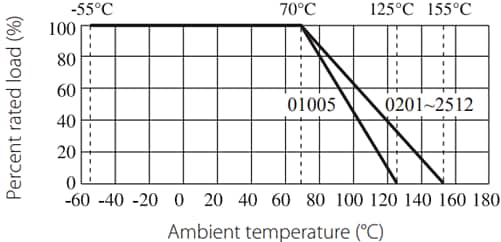

Derating Curve

Products by Category

0201 Package
0402 Package
0603 Package
0805 Package

1206 Package
1210 Package
2010 Package
2512 Package
