ROHM Semiconductor SMLVN6RGBFU1C Surface Mount Chip LEDs

ROHM Semiconductor SMLVN6RGBFU1C Surface Mount Chip LEDs offer a protection diode with three colors (RGB). The SMLVN6RGBFU1C is AEC-Q102 qualified and available in a 3.5mm x 2.8mm package with resin. The ROHM SMLVN6RGBFU1C LEDs are designed for source lights in display units.

Features

  • Emitting material
    • Red – AlGaInP
    • Green – InGaN
    • Blue – InGaN
  • AEC-Q102 qualified

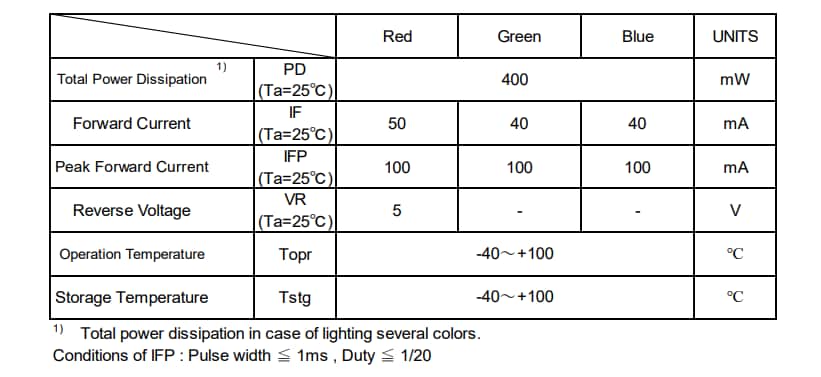

Specifications Chart

ROHM Semiconductor SMLVN6RGBFU1C Surface Mount Chip LEDs

Dimensions mm

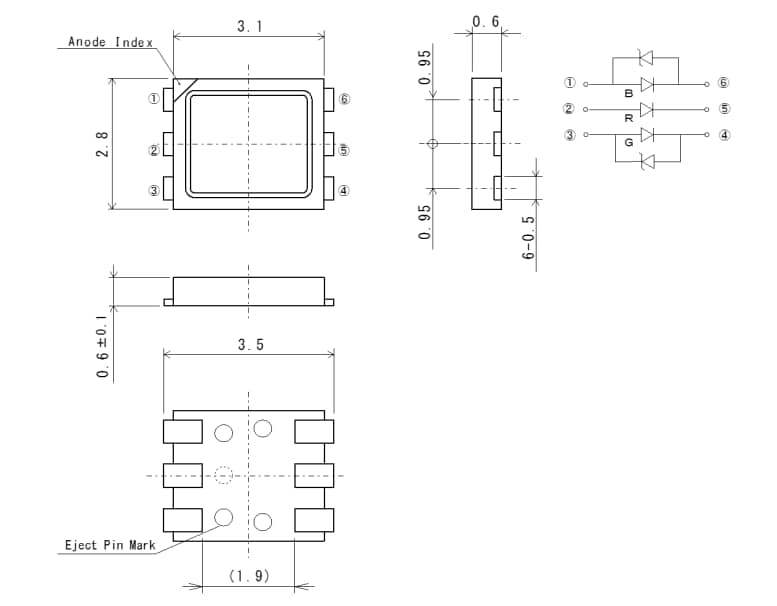

Mechanical Drawing - ROHM Semiconductor SMLVN6RGBFU1C Surface Mount Chip LEDs
