ROHM Semiconductor SMLVN6RGB7W1 Triple Color LED

ROHM Semiconductor SMLVN6RGB7W1 Triple Color LED features low height and improved color mixture that is made possible by the flat frame structure. This triple color LED offers 180mW power dissipation and 20mA forward current. The SMLVN6RGB7W1 LED operates at -40°C to 85°C temperature range. This triple color LED is available in 3.5mm × 2.8mm dimensions and level 3 moisture sensitivity level.

Features

High brightness tri-color LEDs
Low height and improved color mixture
Level 3 moisture sensitivity

Specifications

-40°C to 85°C operating temperature range
180mW power dissipation
20mA forward current
Red:
- 2.1V forward voltage
- 624nm wavelength/color temperature
- 500mcd luminous intensity
Green:
- 3.3V forward voltage
- 527nm wavelength/color temperature
- 1000mcd luminous intensity

Blue:
- 3.5V forward voltage
- 470nm wavelength/color temperature
- 300mcd luminous intensity

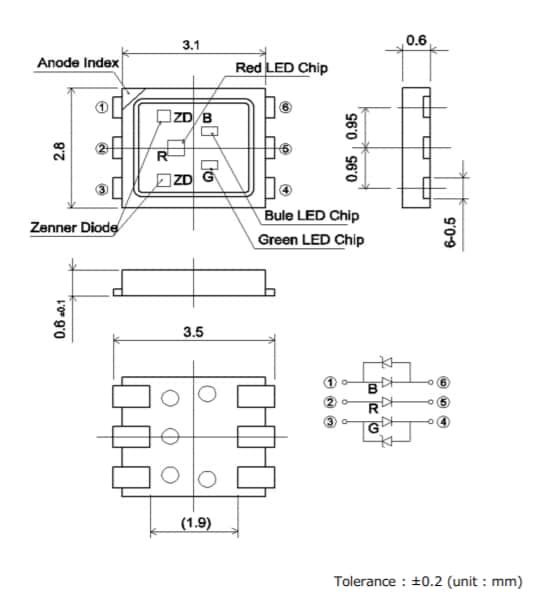

Mechanical Drawing

Mechanical Drawing - ROHM Semiconductor SMLVN6RGB7W1 Triple Color LED

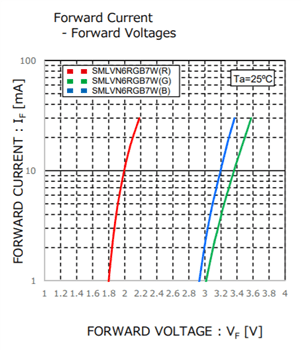

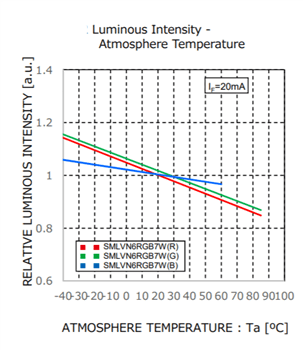

Performance Graphs
