ROHM Semiconductor SML-S15R2TT86 IR LED

ROHM Semiconductor SML-S15R2TT86 IR LED features narrow directivity, high brightness, and availability of reverse mounting. This infrared emitter LED is available with a surface mount lens and level 3 moisture sensitivity. The SML-S15R2TT86 LED operates at -40°C to 85°C temperature range and 20mA forward current. This IR LED offers 1.4V forward voltage, 100mW power dissipation, 12mW/sr typical radiant intensity, and 870nm wavelength.

Features

Surface mount lens LED
Narrow directivity and high brightness

Availability of reverse mounting
Level 3 moisture sensitivity

Specifications

-40°C to 85°C operating temperature range
100mW power dissipation
20mA forward current

1.4V forward voltage
12mW/sr typical radiant intensity
870nm wavelength

ROHM Semiconductor SML-S15R2TT86 IR LED

Features

Specifications

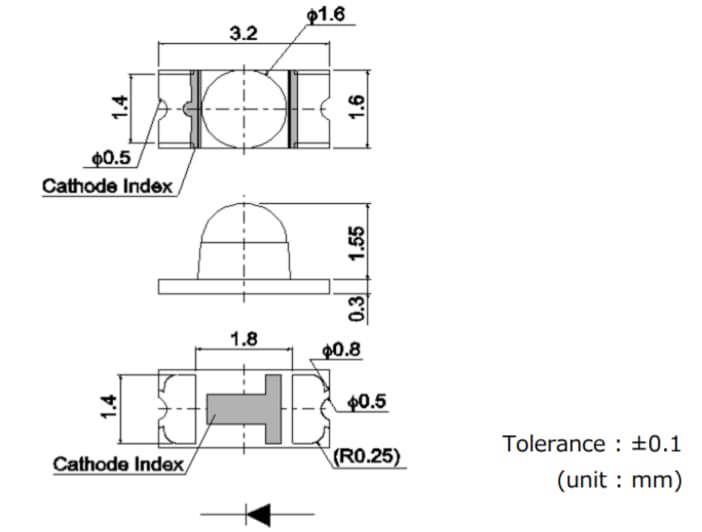

Mechanical Drawing

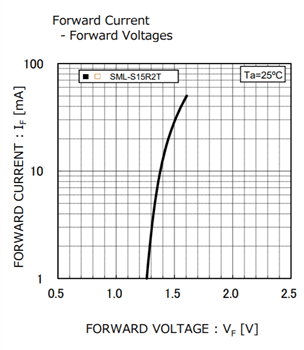

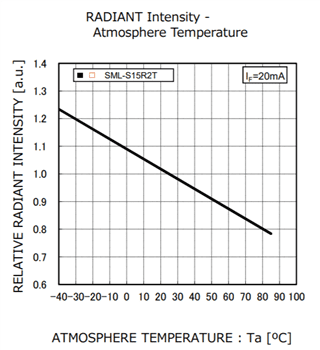

Performance Graphs
