ROHM Semiconductor RSDT27NS Transient Voltage Suppressor

ROHM Semiconductor RSDT27NS Transient Voltage Suppressor is a unidirectional voltage suppressor that protects sensitive electronic equipment against surges below 3600W (at t_p=10/1000µs). This voltage suppressor features high reliability and high overcurrent capability. The RSDT27NS is a power mold type voltage suppressor with 3 terminals. This voltage suppressor offers 5W power dissipation (P_D) and 22V maximum reverse stand-off voltage (V_RWM). The RSDT27NS voltage suppressor is suitable for surge protection.

Features

Unidirectional voltage suppressor
Power mold type
High reliability

Comes with 3 terminals
Silicon epitaxial planar structure

Specifications

Protects against surges below 3600W (at t_p=10/1000µs)
5W power dissipation (P_D)
TO-263S (D²PAK) package

22V reverse stand-off voltage V_RWM (maximum)
10µA reverse current (I_R) at V_R=22V
-55°C to 150°C operating temperature range

ROHM Semiconductor RSDT27NS Transient Voltage Suppressor

Features

Specifications

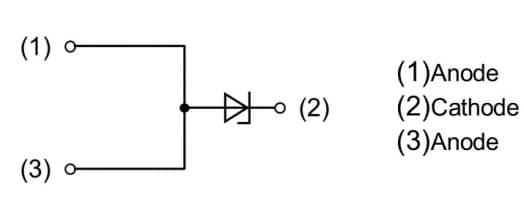

Inner Circuit Diagram

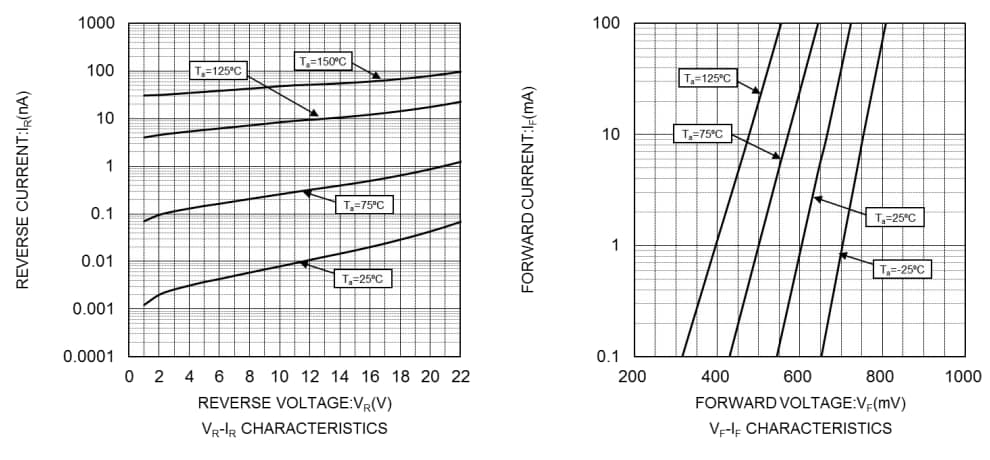

Performance Graphs
