ROHM Semiconductor RPMD-0132 Photo Diode

ROHM Semiconductor RPMD-0132 Photo Diode has a high sensitivity to green wavelength components, making it ideal for pulse wave sensing applications. The device has an 800nm to 1050nm spectral range and a 100ns response time. The RPMD-0132 features a low-profile package and a large active area to package area ratio.

The ROHM Semiconductor RPMD-0132 Photo Diode is offered in a 4.4mm x 3.7mm package and has a -25℃ to +75℃ operating temperature range.

Features

  • Improved green wavelength sensitivity for the pulse wave sensing
  • Infrared wavelength is also an active sensor area
  • 100ns response time
  • 940nm wavelength λP
  • 800nm to 1050nm spectral range
  • 500pA dark current
  • High active area ratio to the package area
    • 3.0mm x 3.0mm active area
    • 4.4mm x 3.7mm x 0.55mm package
  • -25℃ to +75℃ operating temperature range

Applications

  • Consumer electronics
  • Industrial electronics
  • Wearables
  • Other general-purpose applications

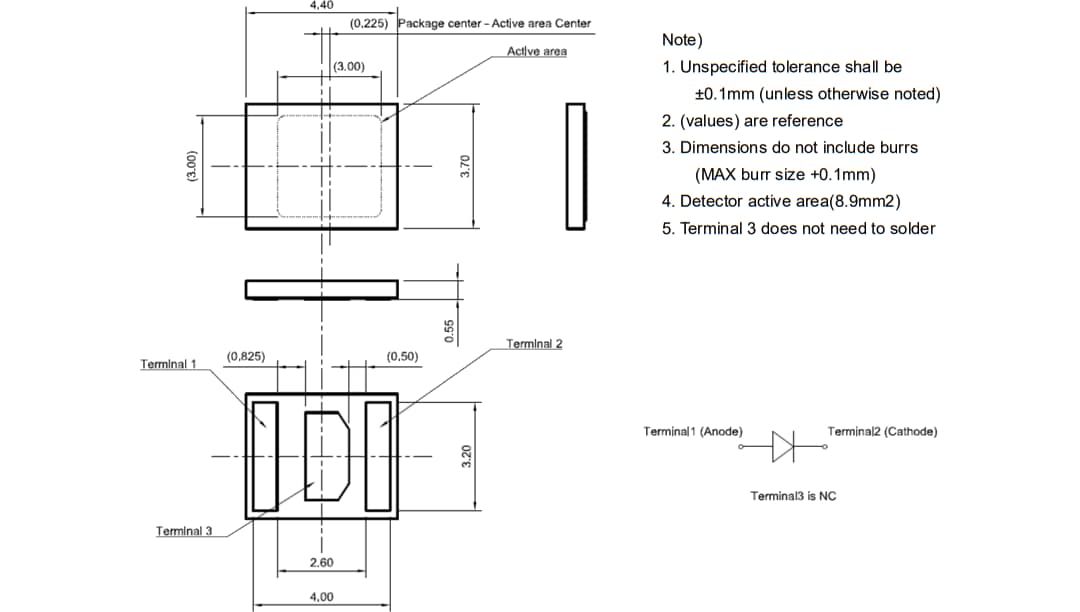

Package Outline

Mechanical Drawing - ROHM Semiconductor RPMD-0132 Photo Diode
