ROHM Semiconductor RPI-0451E Optical Sensor

ROHM Semiconductor RPI-0451E Optical Sensor is an eco-friendly and transmission-type photo-interrupter with a 4.5mm wide gap. This optical sensor features a positioning pin that results in high mounting accuracy. The RPI-0451E sensor operates at -25°C to 85°C temperature range and stored at -30°C to 85°C temperature range. Typical applications include printers, amusement, and optical control equipment.

Features

4.5mm wide gap
Positioning pin for high mounting accuracy
-25°C to 85°C operating temperature range
-30°C to 85°C storage temperature range
Input (infrared light-emitting diode):
- 35mA forward voltage
- 5V reverse voltage
- 70mW power dissipation

Output (phototransistor):
- 30V collector-emitter voltage
- 4.5V emitter-collector voltage
- 30mA collector current
- 80mW collector dissipation

Applications

Printers
Amusement
Optical control equipment

ROHM Semiconductor RPI-0451E Optical Sensor

Features

Applications

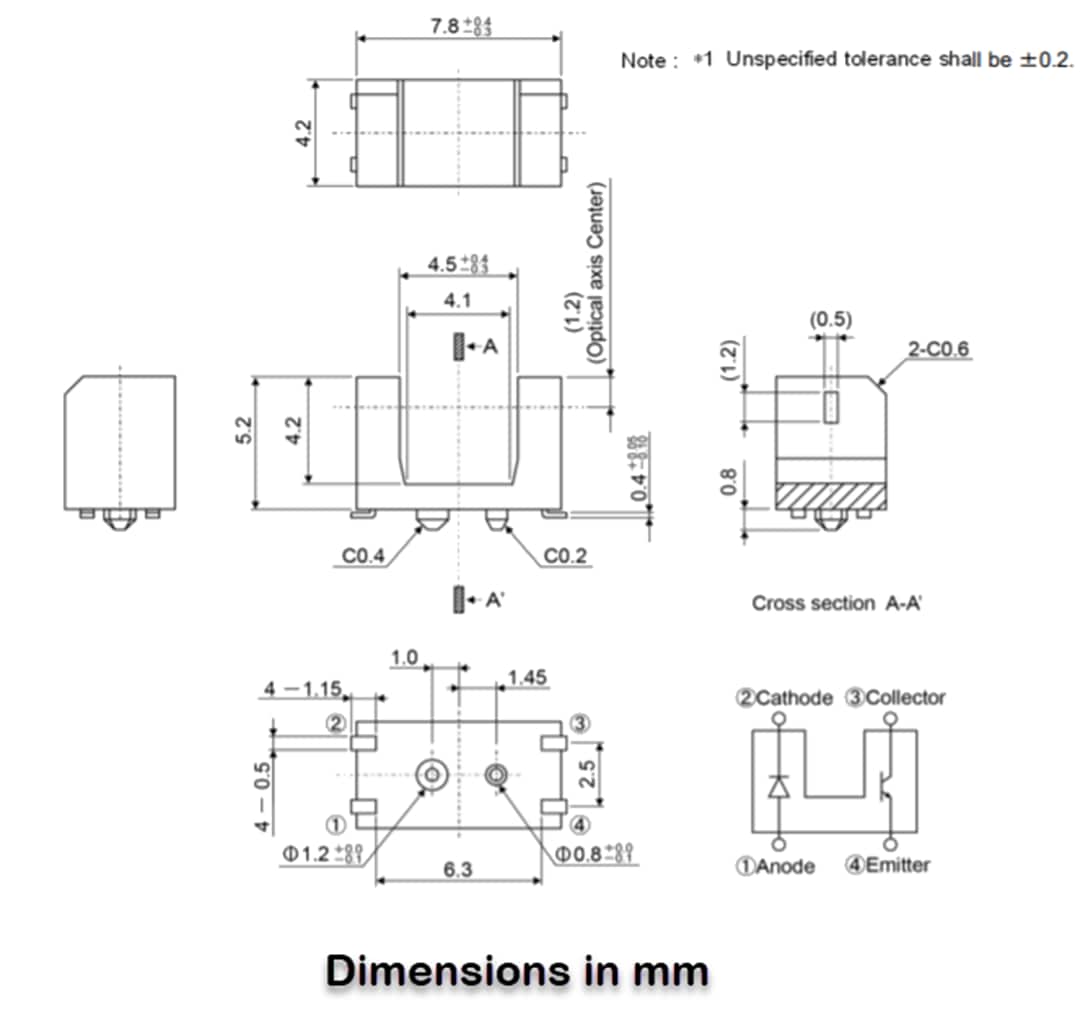

Mechanical Drawing
