ROHM Semiconductor Red Single Mode Laser Diodes

ROHM Semiconductor Red Single Mode Laser Diodes are available in 650nm and 635nm wavelengths with the industry standard of Φ5.6 metal stem. These diodes provide the optimal storage temperature range of -40°C to 85°C.

Applications

Sensor
Bar-code scanner
Leveling

Ranging
Optical disk pickup
Line marker

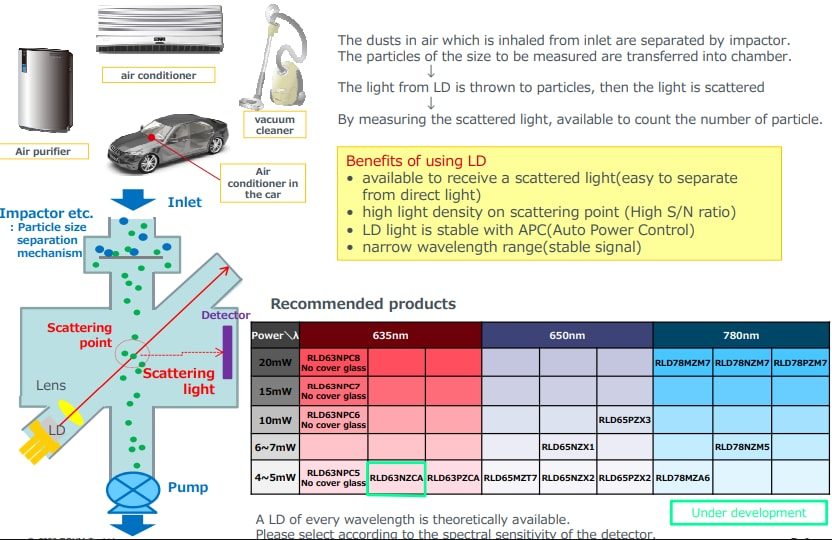

Dust (PM2.5, Pollen, Others) Detection Light Source

Chart - ROHM Semiconductor Red Single Mode Laser Diodes

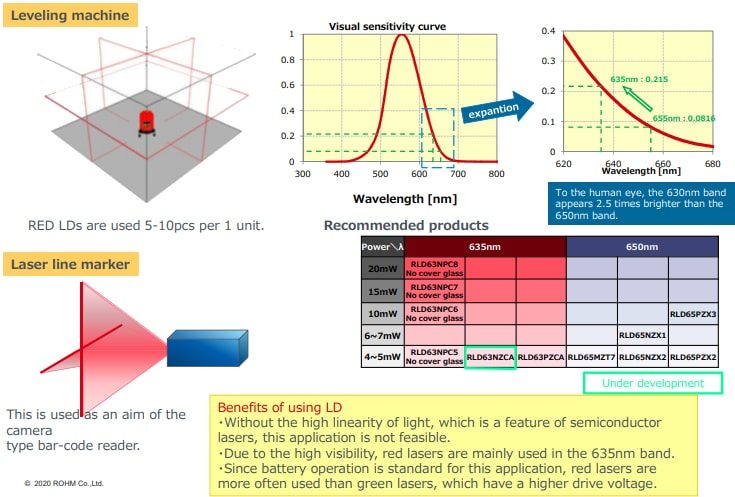

Leveling and Line Marker Light Source

Chart - ROHM Semiconductor Red Single Mode Laser Diodes

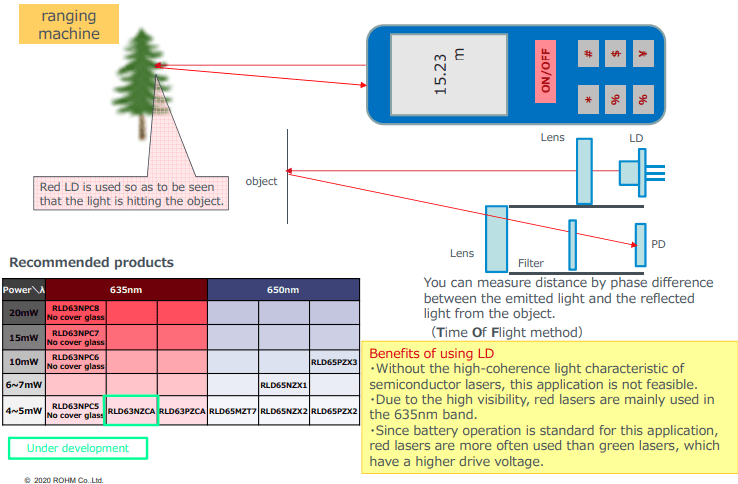

Ranging Machine Light Source

Chart - ROHM Semiconductor Red Single Mode Laser Diodes

Equivalent Circuit Diagram

Schematic - ROHM Semiconductor Red Single Mode Laser Diodes

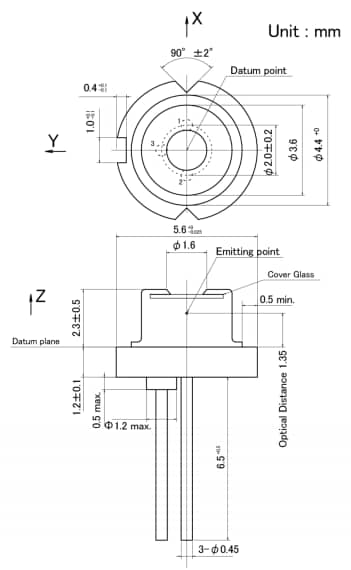

Dimension Diagram

Mechanical Drawing - ROHM Semiconductor Red Single Mode Laser Diodes
