ROHM Semiconductor RASMID Silicon RF Capacitors

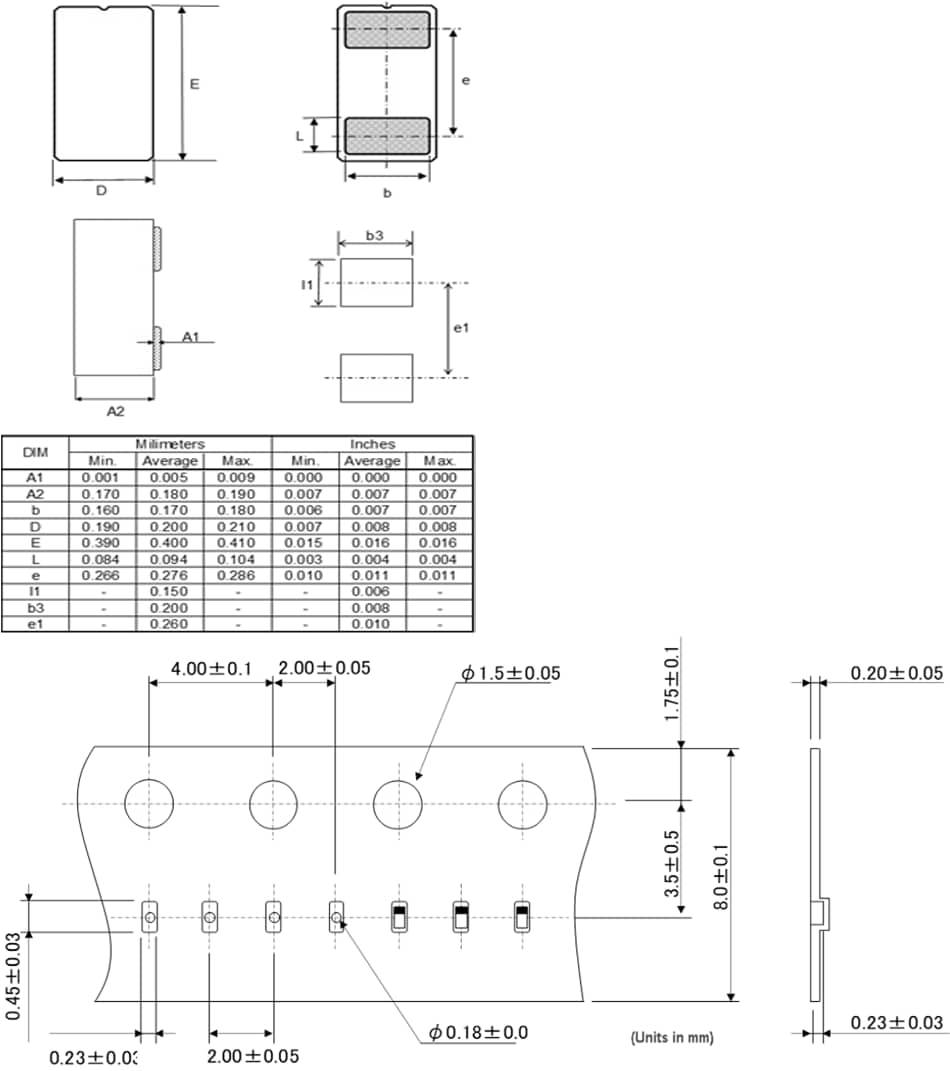

ROHM Semiconductor RASMID Silicon RF Capacitors offer high reliability, 180μm low profile, and 3.6V rated voltage. These silicon capacitors deliver high shear strength by large electrode sizes. The RASMID silicon RF capacitors feature up to 1000pF typical capacitance, ±10μm dimension tolerance, and ±8kV (HBM) ESD protection level. These capacitors operate at -55°C to 150°C temperature range, -15% to 15% capacitance tolerance, and 8.2V to 9.2V reverse breakdown voltages. The RASMID silicon RF capacitors come in a 0.4mm x 0.2mm package and are ideal for wireless, wearable equipment, and optical transceivers.
