ROHM Semiconductor PTZTF Automotive Zener Diodes

ROHM Semiconductor PTZTF Automotive Zener Diodes are AEC-Q101 qualified Zener Diodes optimized for automotive voltage regulation. The PTZTF Zener Diodes feature a 2.0V to 40.0V Zener voltage range and a 10mA to 40mA Zener current range. These devices exhibit a 4Ω to 25Ω Zener impedance range and 1000mW power dissipation.

The ROHM Semiconductor PTZTF Automotive Zener Diodes are available in a compact DO-214AC (SMA) surface-mount package.

Features

  • AEC-Q101 qualified
  • 2.0V to 40.0V Zener voltage range (VZ)
  • 10mA to 40mA Zener current range (IZ)
  • 10μA to 200μA reverse current range (IR)
  • 4Ω to 25Ω Zener impedance range (ZZ(Ω))
  • 1000mW power dissipation (PD)
  • 150°C junction temperature (Tj)
  • -55°C to +150°C storage temperature (Tstg)
  • Silicon epitaxial planar structure
  • DO-214AC (SMT) package

Applications

  • Voltage regulation
  • Automotive rectification

Inner Circuit

Schematic - ROHM Semiconductor PTZTF Automotive Zener Diodes

Package Outline

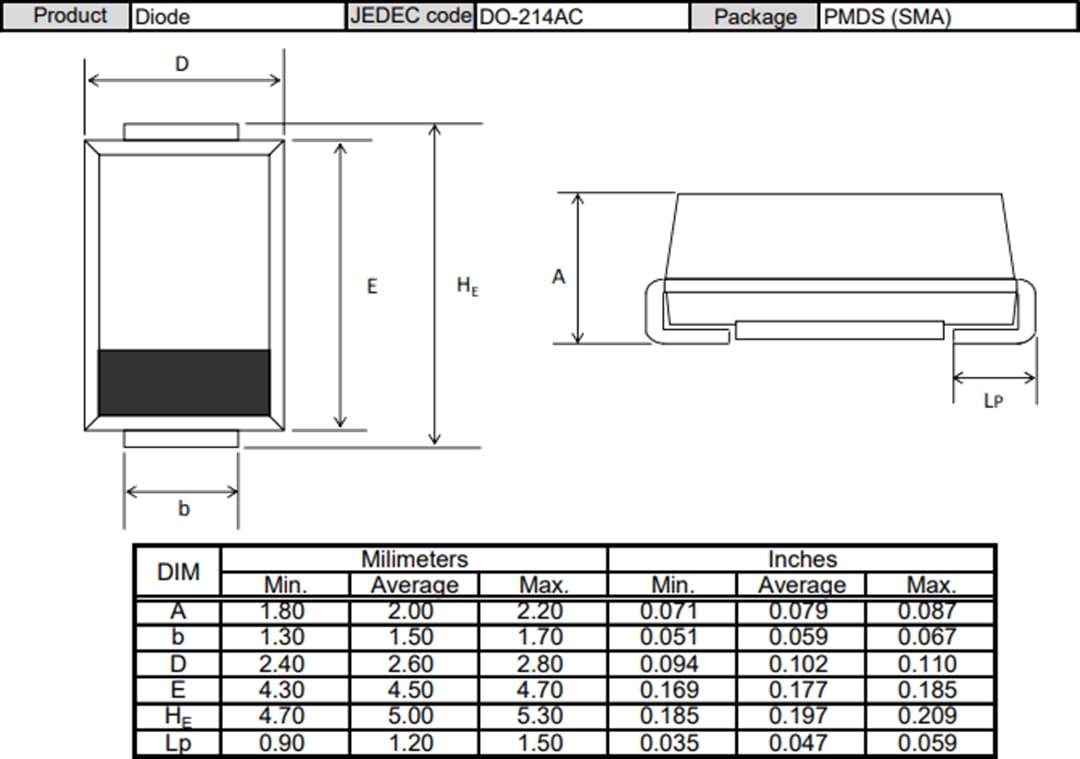

Mechanical Drawing - ROHM Semiconductor PTZTF Automotive Zener Diodes
