ROHM Semiconductor LTR100L High Power Thick Film Shunt Resistors

ROHM Semiconductor LTR100L High Power Thick Film Shunt Resistors offer 4W rated power, 91mΩ maximum resistance, and -65°C to +155°C temperature range. These resistors feature high joint reliability with long side terminations, 10mΩ current detection, and correspond to AEC-Q200. ROHM Semiconductor LTR100L Resistors come in a space-saving 3264 (1225) case size and have ISO 9001 / IATF 16949 certifications.

Features

Achieves 4W rated power for resistors in the 3264 size (1225 size in inches)
Higher temperature coefficient of resistance contributes to greater application reliability

High joint reliability with long side terminations
Versatile design for a variety of applications
Space-saving design
Corresponds to AEC-Q200

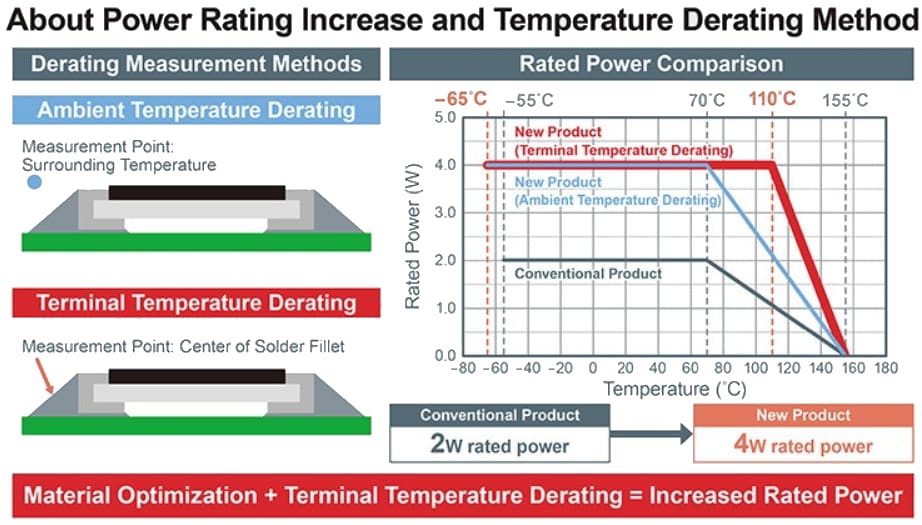

Temperature Derating Method

ROHM Semiconductor LTR100L High Power Thick Film Shunt Resistors

Applications

Industrial Equipment
- Factory automation
- Motor peripheral circuits
- Power supplies
Consumer Appliances
- Air conditioners
- Washers
- Refrigerators
- Vacuum cleaners

2-wheel vehicle headlamps
EV scooters
E-bikes

Specifications

ISO 9001 / IATF 16949 certification
10mΩ current detection
3264 (1225) case size

91mΩ maximum resistance
-65°C to +155°C temperature range

ROHM Semiconductor LTR100L High Power Thick Film Shunt Resistors

Features

Temperature Derating Method

Applications

Specifications

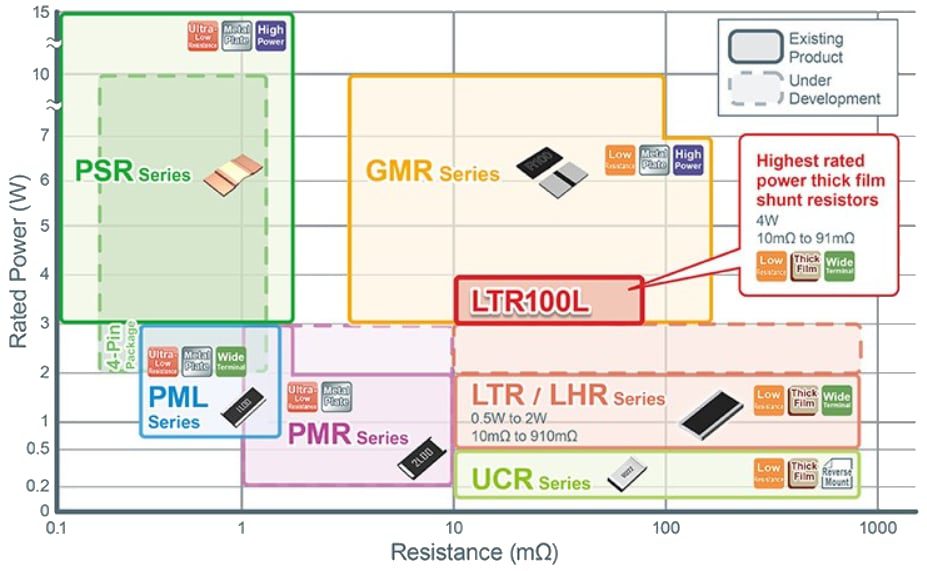

Shunt Resistor Family Infographic
