ROHM Semiconductor LMR1901YG-M Automotive CMOS Operational Amplifiers

ROHM Semiconductor LMR1901YG-M Automotive CMOS Operational Amplifiers are designed for battery-powered and portable devices and sensor amplifiers. The ROHM Semiconductor LMR1901YG-M boasts ultra-low power consumption, low input offset voltage, and Rail-to-Rail Input/Output. Key features include Nano Energy™ Integrated OPAMP and AEC-Q100 qualification.

Features

Nano Energy integrated OPAMP
AEC-Q100 qualified
Ultra-low supply current

Low-input offset voltage
Rail-to-rail input/output

Applications

Battery-powered equipment
Portable equipment
Sensor amplifiers
Car navigation system
Car audio

Current monitoring amplifier
Human detection sensor amplifier
Gas sensor amplifier
Photodiode amplifier

Specifications

160nA (Typ.) supply current
0.55mV (Max) input offset voltage
V_SS to V_DD common-mode input voltage range
0.5pA (Typ.) input bias current

Operating supply voltage range
- 1.7V to 5.5V single supply
- ±0.85V to ±2.75V dual supply
-40°C to +105°C operating temperature range

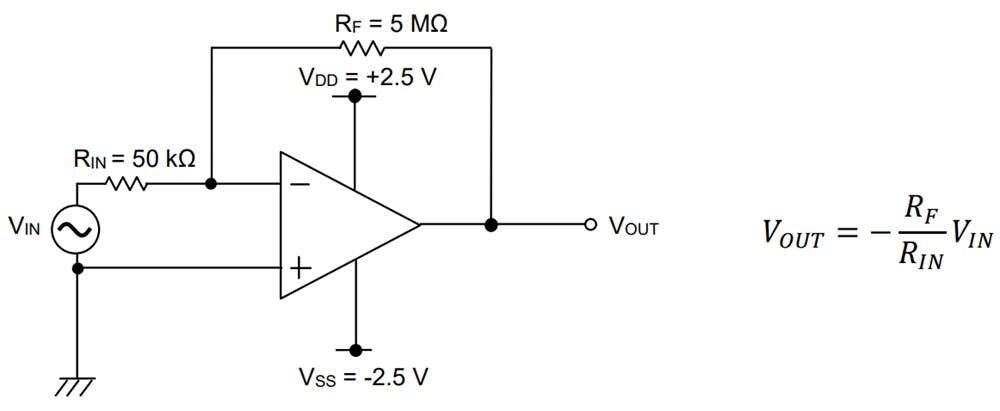

Typical Application Circuit

Application Circuit Diagram - ROHM Semiconductor LMR1901YG-M Automotive CMOS Operational Amplifiers
