ROHM Semiconductor LBP-602 Double Digit LED Numeric Displays

ROHM Semiconductor LBP-602 Double Digit LED Numeric Displays feature ROHM’s in-house 4-element (AIGalnP) high-brightness LED dies. The LBP-602 implements top-class luminous intensity while keeping degradation considerably slow. The ROHM LBP-602 preserves vivid illumination and the image of sets high over a long time. The device has a 14.3mm letter height with both anode common type and cathode common type available for each color.

Features

14.3mm for letter height, two-lines LED numerical displays
About 10 times more luminous intensity than the conventional products by use of 4-element LED dies, (in case of orange color)
The same luminous intensity as the conventional products at 1/10 of current, which contributes lots to energy-saving of sets

Light leakage from segments probable with the small display packages is very rare
Both anode common type and cathode common type are available in the lineup for each color

ROHM Semiconductor LBP-602 Double Digit LED Numeric Displays

Features

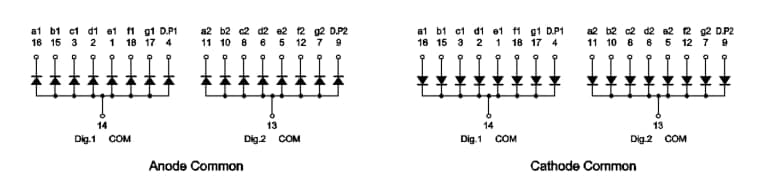

Internal Circuit Schematics

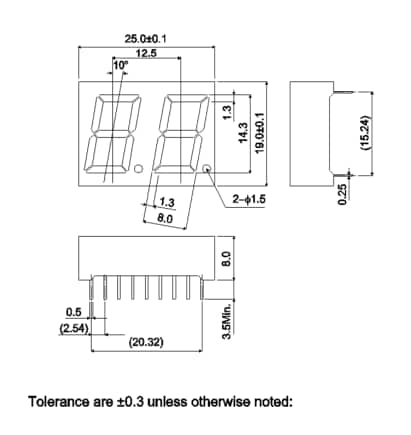

Dimensions mm

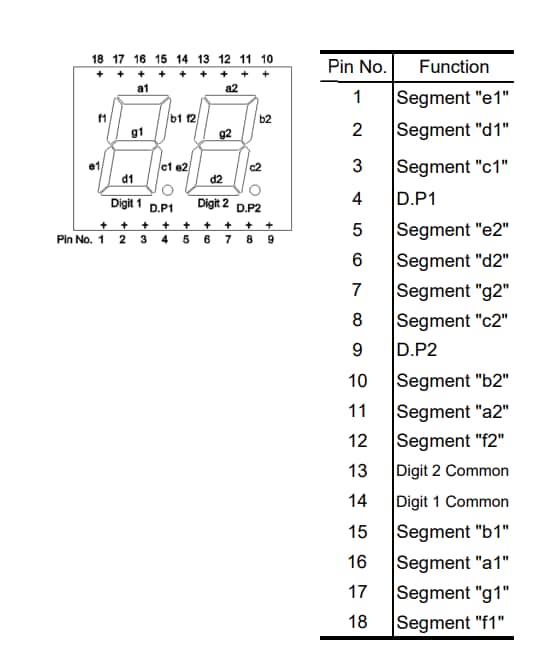

Pin Assignments
