ROHM Semiconductor LB-602 Double Digit LED Numeric Displays

ROHM Semiconductor LB-602 Double-Digit LED Numeric Displays offer a 14.3mm letter height intended for use in the light. The LB-602 utilizes GaAsP on GaP and AIGalnP GaP materials of emission and is packed with epoxy resin. The device features an anode common type and cathode common type available for each color.

Features

14.3mm Letter height
The package of surface color is black, and the color of the segment is colored in emitting color

Dimension is 25.0×19.0><8.0mm
Each color has anode common and cathode common respectively

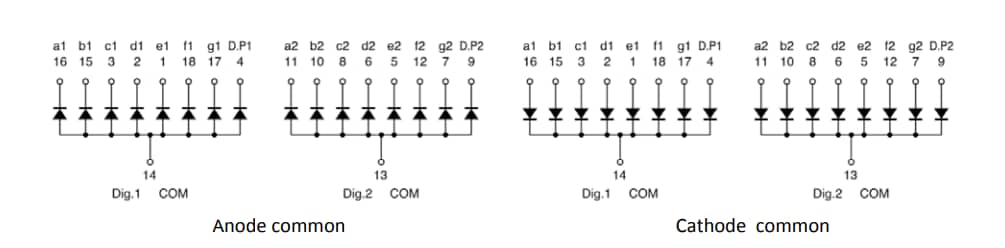

Internal Circuit Schematics

Application Circuit Diagram - ROHM Semiconductor LB-602 Double Digit LED Numeric Displays

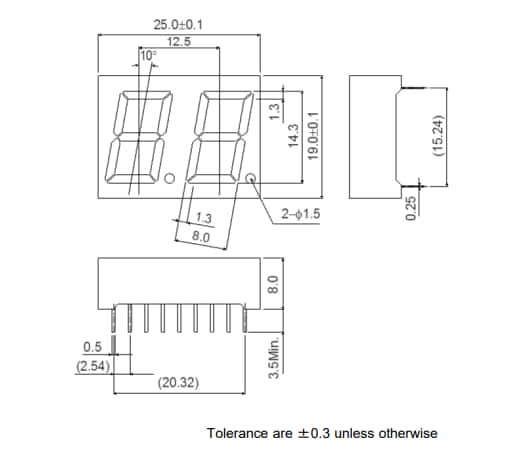

Dimensions mm

Mechanical Drawing - ROHM Semiconductor LB-602 Double Digit LED Numeric Displays

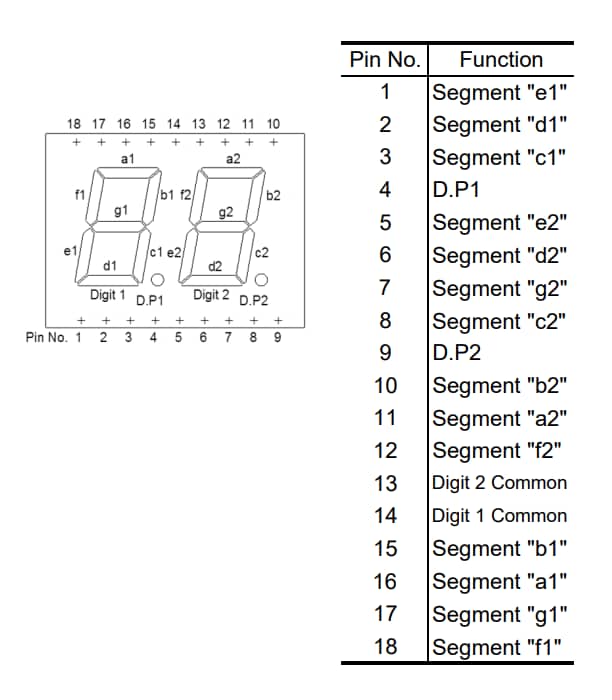

Pin Assignments

Location Circuit - ROHM Semiconductor LB-602 Double Digit LED Numeric Displays
