ROHM Semiconductor LAP-601 Single Digit LED Numeric Displays

ROHM Semiconductor LAP-601 Single Digit LED Numeric Displays feature ROHM’s in-house 4-element (AIGalnP) high-brightness LED dies. The LAP-601 implements top-class luminous intensity while keeping degradation considerably slow. The ROHM LAP-601 preserves vivid illumination and the image of sets high over a long time. The device has a 14.6mm letter height with both anode common type and cathode common type available for each color.

Features

14.6mm for letter height, single-line LED numerical displays
About 10 times more luminous intensity than the conventional products by use of 4-element LED dies, (in case of orange color)
The same luminous intensity as the conventional products at 1/10 of current, which contributes lots to energy-saving of sets

Light leakage from segments probable with the small display packages is very rare
Both anode common type and cathode common type are available in the lineup for each color

ROHM Semiconductor LAP-601 Single Digit LED Numeric Displays

Features

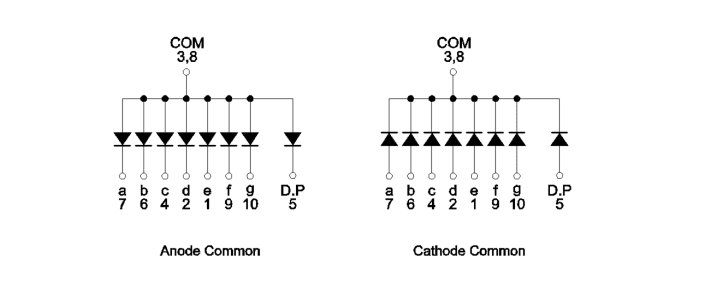

Internal Circuit Schematic

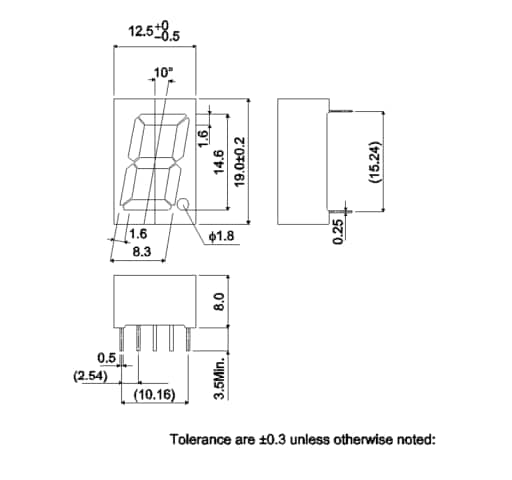

Dimensions mm

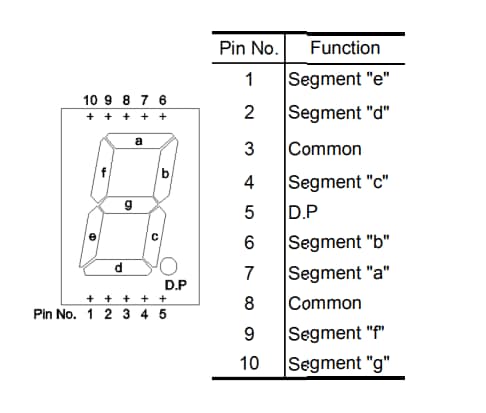

Pin Assignments
