ROHM Semiconductor LAP-301 Single Digit LED Numeric Displays

ROHM Semiconductor LAP-301 Single Digit LED Numeric Displays feature 4-element (AIGalnP) high-brightness LED dies. The LAP-301 provides high brightness and luminous intensity, ten times higher than conventional displays. Degradation is considerably slow on the ROHM LAP-301 displays allowing unchanged illumination vividness and the image of sets high over a long period.

Features

8mm for letter height, single-line LED numerical displays
About 10 times more luminous intensity than the conventional products by use of 4-element LED dies, (in case of orange color)
The same luminous intensity as the conventional products at their 1/10 of current, which contributes lots to energy-saving of sets

Light leakage from segments probable with the small display packages is very rare
Both anode common type and cathode common type are available in the lineup for each color

ROHM Semiconductor LAP-301 Single Digit LED Numeric Displays

Features

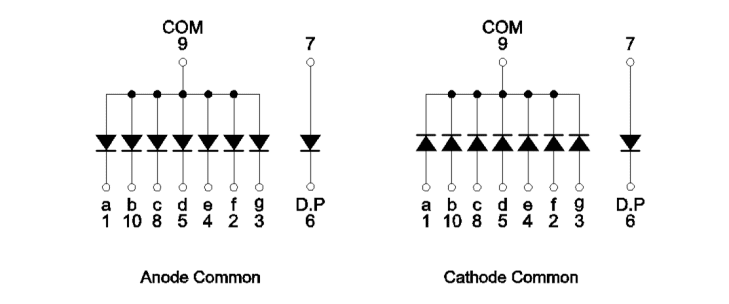

Internal Circuit Schematic

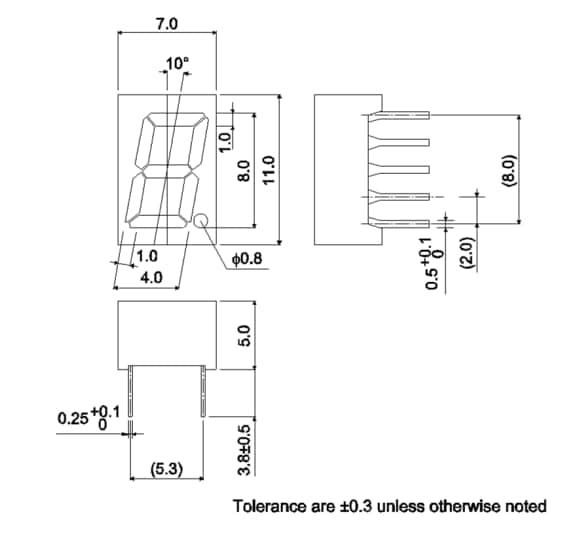

Dimensions mm

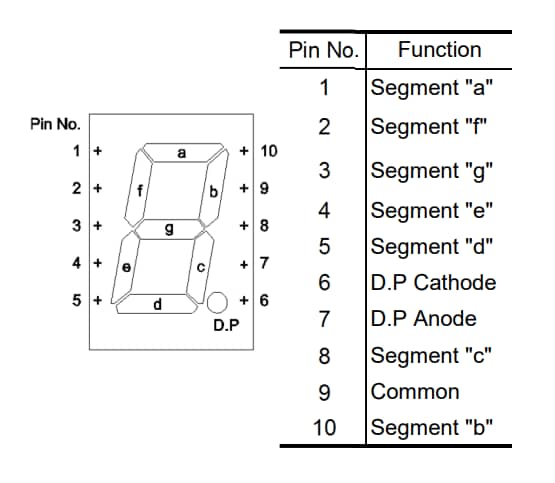

Pin Assignments
