View Datasheet

ROHM Semiconductor CSL1501RW 860nm Infrared LED

ROHM Semiconductor CSL1501RW 860nm Infrared LED is a side view type LED. The CSL1501RW LED is an ultra-compact product. This LED features 100mW power dissipation (PD), 50mA forward current (IF), and 5V reverse voltage (VR). The CSL1501RW LED is ideal as a light source for eye tracking of devices equipped with VR / MR / AR functions. These devices include game consoles, headsets in the industrial field, and head-mounted displays.

Features

  • Side view type
  • Ultra-compact
  • 50mA forward current (IF)
  • 5V reverse voltage (VR)
  • 860nm typical wavelength
  • -40°C to 85°C operating temperature range
  • 1mm x 0.55mm dimensions

Applications

  • Game consoles
  • Headsets in the industrial field
  • Head-mounted displays

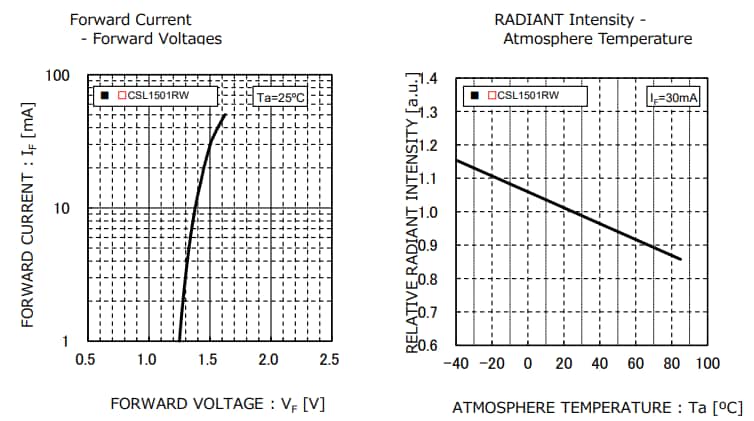

Performance Graphs

Performance Graph - ROHM Semiconductor CSL1501RW 860nm Infrared LED

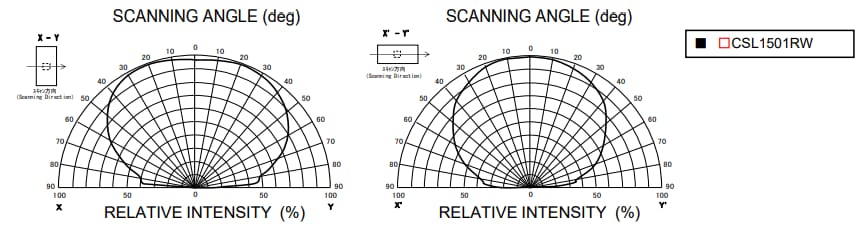

Viewing Angle

ROHM Semiconductor CSL1501RW 860nm Infrared LED

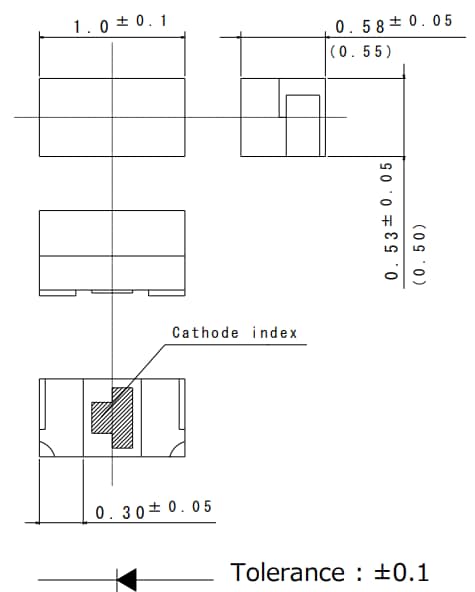

Dimensions (in mm)

Mechanical Drawing - ROHM Semiconductor CSL1501RW 860nm Infrared LED
