ROHM Semiconductor BUxxJA2DG-C Automotive CMOS LDO Regulators

ROHM Semiconductor BUxxJA2DG-C Automotive CMOS LDO Regulators are high performance, AEC-Q100 qualified low dropout regulators with a 200mA output. The BUxxJA2DG-C LDO Regulators offer excellent noise and load responsiveness characteristics despite their low 33μA circuit current consumption. These devices are ideal for automotive applications such as radar and camera power supplies.

The BUxxJA2DG-C LDO Regulators are offered in a compact 2.90mm x 2.80mm SSOP5 package.

Features

AEC-Q100 qualified
Compatible with small ceramic capacitors (C_in=C_o=0.47μF)
With built-in output discharge circuit
68% ripple rejection
ON/OFF control of output voltage
Built-in overcurrent protection circuit (OCP)
Built-in thermal shutdown circuit (TSD)
Low dropout voltage

1.7V to 6.0V input voltage range
1.0V to 3.3V output voltage range
±2.0% output voltage accuracy
200mA output current
33μA circuit current
33μA standby current
-40°C to +125°C operating temperature range
SSOP5 package, (2.9mm x 2.8mm x 1.25mm)

Applications

Radar

Camera

ROHM Semiconductor BUxxJA2DG-C Automotive CMOS LDO Regulators

Features

Applications

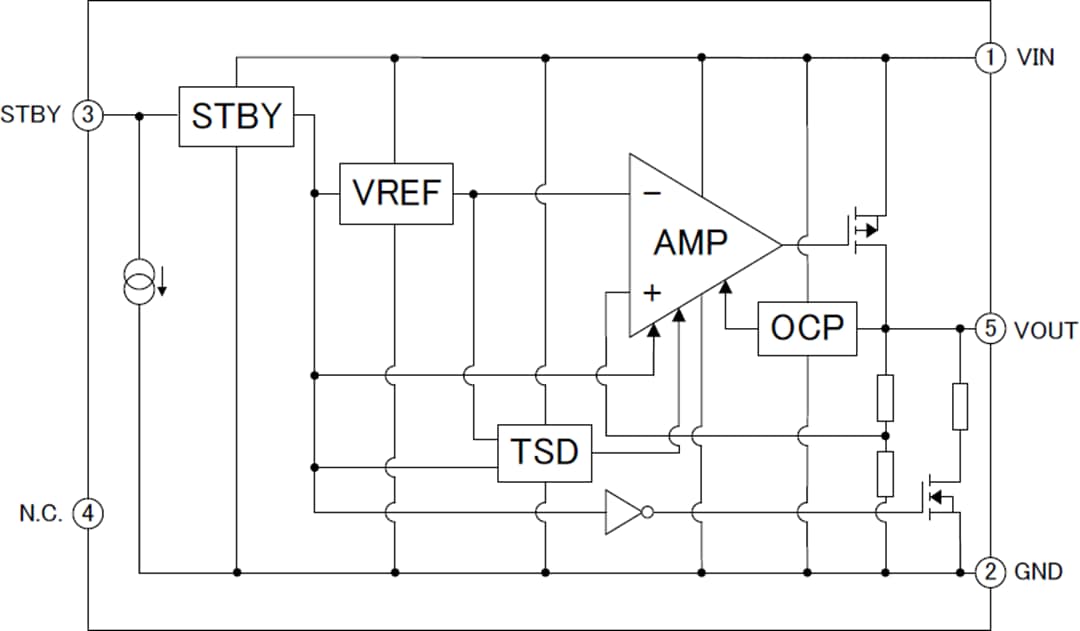

Block Diagram

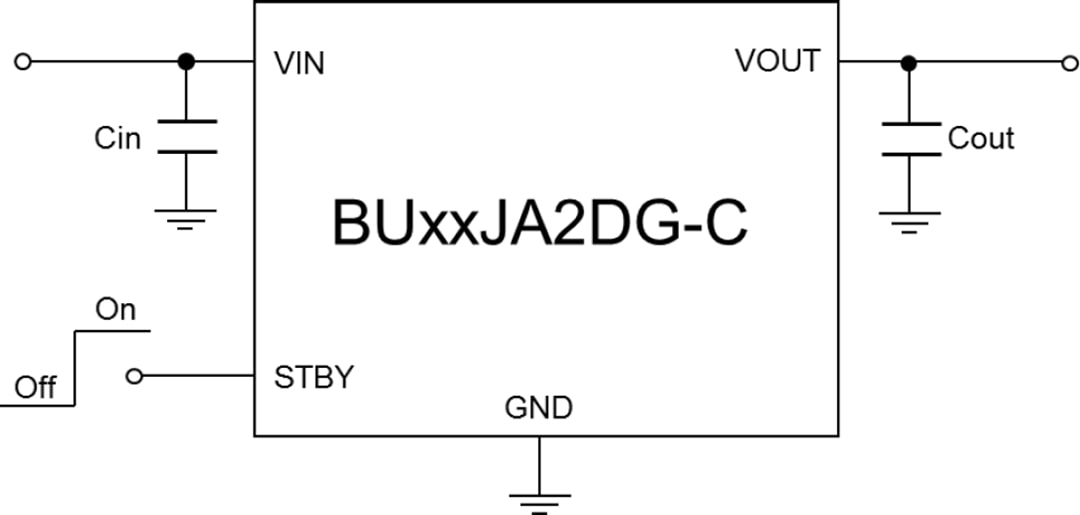

Typical Application Circuit

Pin Designations
