ROHM Semiconductor BU27030NUC Ambient Light Sensor

ROHM Semiconductor BU27030NUC Ambient Light Sensor is optimized for obtaining ambient light data for adjusting the display and backlight power of TVs and smartphones. This device is capable of detecting a very wide range of illuminance. The BU27030NUC features inherent 50Hz/60Hz light noise rejection and excellent IR-cut characteristics for high robustness at high sensitivity. This sensor communicates via a digital serial I²C bus interface with f/s mode support.

The ROHM Semiconductor BU27030NUC Ambient Light Sensor is offered in a compact WSON008X2120 package, ideal for space-constrained applications.

Features

Built-in IR cut filter
2 outputs with different spectral response
Sensitivity adjustment function for compensation for illuminance decrease by optical window
50Hz/60Hz light noise rejection
I²C bus interface with f/s mode support
Corresponds to both 1.2V and 1.8V logic interface
Resolution 0.0007lx/count (Typical)

1.7V to 3.6V supply voltage range
20klx illumination detection range
120μA typical current consumption
1.0μA power-down current
-40°C to +85°C operating temperature range
2.1mm x 2.0mm x 0.6mm WSON008X2120 package

Applications

Smartphones
Tablet PCs
Notebook

Portable gaming consoles
LCD TVs
Digital cameras

ROHM Semiconductor BU27030NUC Ambient Light Sensor

Features

Applications

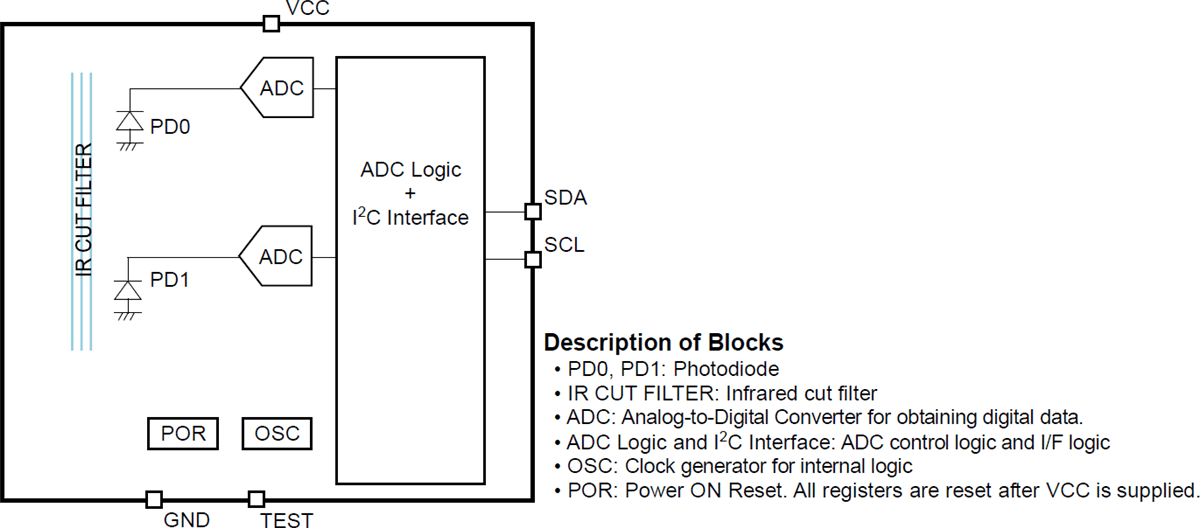

Block Diagram

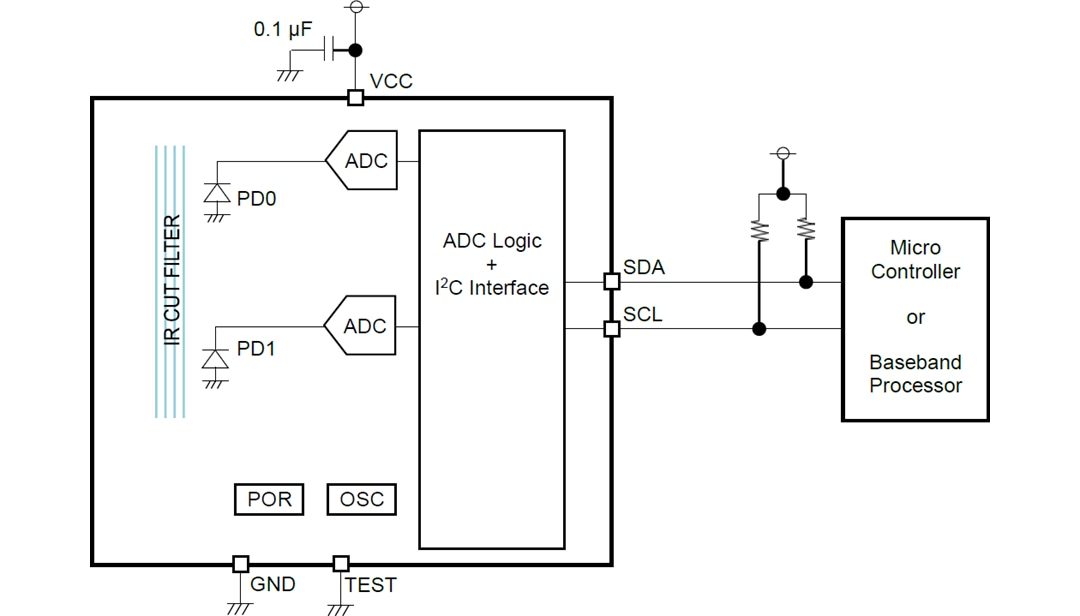

Typical Application Circuit
