ROHM Semiconductor BM6337x/BM6357x IGBT Intelligent Power Modules

ROHM Semiconductor BM6337x/BM6357x IGBT Intelligent Power Modules (IPMs) are composed of gate drivers, bootstrap diodes, IGBTs, and flywheel diodes. These 600V IPMs have a collector current of 10A up to 30A. The devices are ideal for AC100 to 240Vrms (DC Voltage: Less Than 400V) class motor control applications, and other applications like compressor motor control for air conditioners, washing machines, or refrigerators.

Features

3phase DC/AC Inverter
600V/30A
Low Side IGBT Open Emitter
Built-in Bootstrap Diode
High Side IGBT Gate Driver (HVIC): SOI (Silicon On Insulator) Process, Drive Circuit, High Voltage Level Shifting, Current Limit for Bootstrap Diode, Control Supply Under-Voltage Locked Out (UVLO)

Low Side IGBT Gate Driver (LVIC): Drive Circuit, Short Circuit Current Protection (SCP), Control Supply Under Voltage Locked Out (UVLO), Thermal Shutdown (TSD), Temperature Output by Analog Signal (VOT)
Fault Signal (LVIC) Corresponding to SCP (Low Side IGBT), TSD, UVLO Fault
Input Interface 3.3V, 5V Line
UL Recognized: UL1557 File E468261

Applications

AC100 to 240Vrms(DC Voltage: Less Than 400V) Class Motor Control
Compressor Motor Control for Air Conditioner, Washing Machine, Refrigerator

ROHM Semiconductor BM6337x/BM6357x IGBT Intelligent Power Modules

Features

Applications

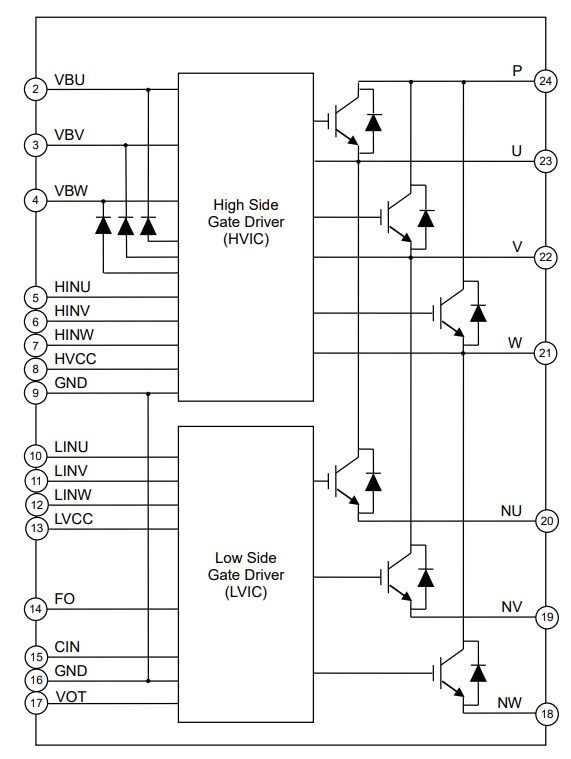

Block Diagram
